GALVANISED STEEL POLE 1 STEP
Ideal solution for mounting of contemporary luminaires.

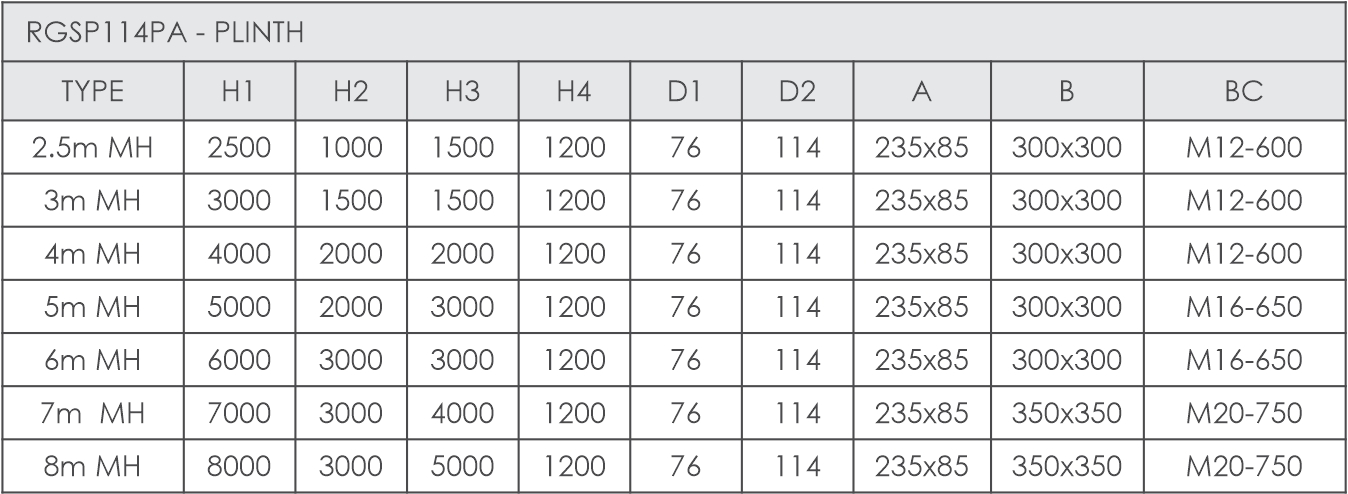

Plinth mounted or buried option.
Manufactured from Grade S 355 steel
Mounting height from 2.5m to 8m.
MODEL NUMBER : GALVANISED STEEL POLE 1 STEP
BODY : Galvanised Steel.
MOUNTING : Plinth Mounted or Buried.
FINISH : Raw or Powder coated.

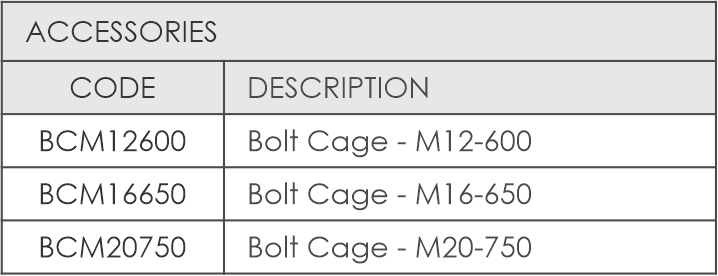

ACCESSORIES : Access door and bolt cage.
FEATURES : Pole designs are done in accordance with SABS 0225 Specification.
A Certificate of Conformance on the design (signed by a registered Professional Engineer) is available for all poles manufactured.
All products manufactured are Hot Dip Galvanised by a SABS approved Galvaniser in accordance to SANS 121 / SABS 1461 Specification. Only Galvanisers which are Members of the HDGASA (Hot Dip Galvanising Association of SA) are used.
All poles are manufactured from Grade S 355 steel manufactured in accordance to SANS 657/1&3 Specification.
All poles are manufactured to the required specification of the specific Council.
All openings are done by means of Plasma Arc.
All products are galvanised prior to Powder Coating.
NOTE : All Galvanised steel poles are manufactured to client requirements and are
designed to accommodate luminaire selection and environmental conditions.
To be approved by Civil Engineer
- Size of concrete plinth
- Reinforcement for concrete plinth
- Bolt cage size subject to application
- Buried depth
