Zonke

Engineered for street and amenity lighting, guiding both pedestrians and vehicles with directional illumination. This fitting is ideal for municipalities, commercial developments, and any outdoor space requiring reliable solar-powered lighting.

Ideal solution for street lighting and parking areas

Street Lighting CLASS - A4 | B | C

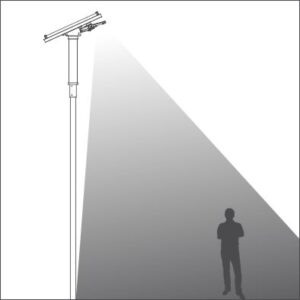

Asymmetrical light distribution.

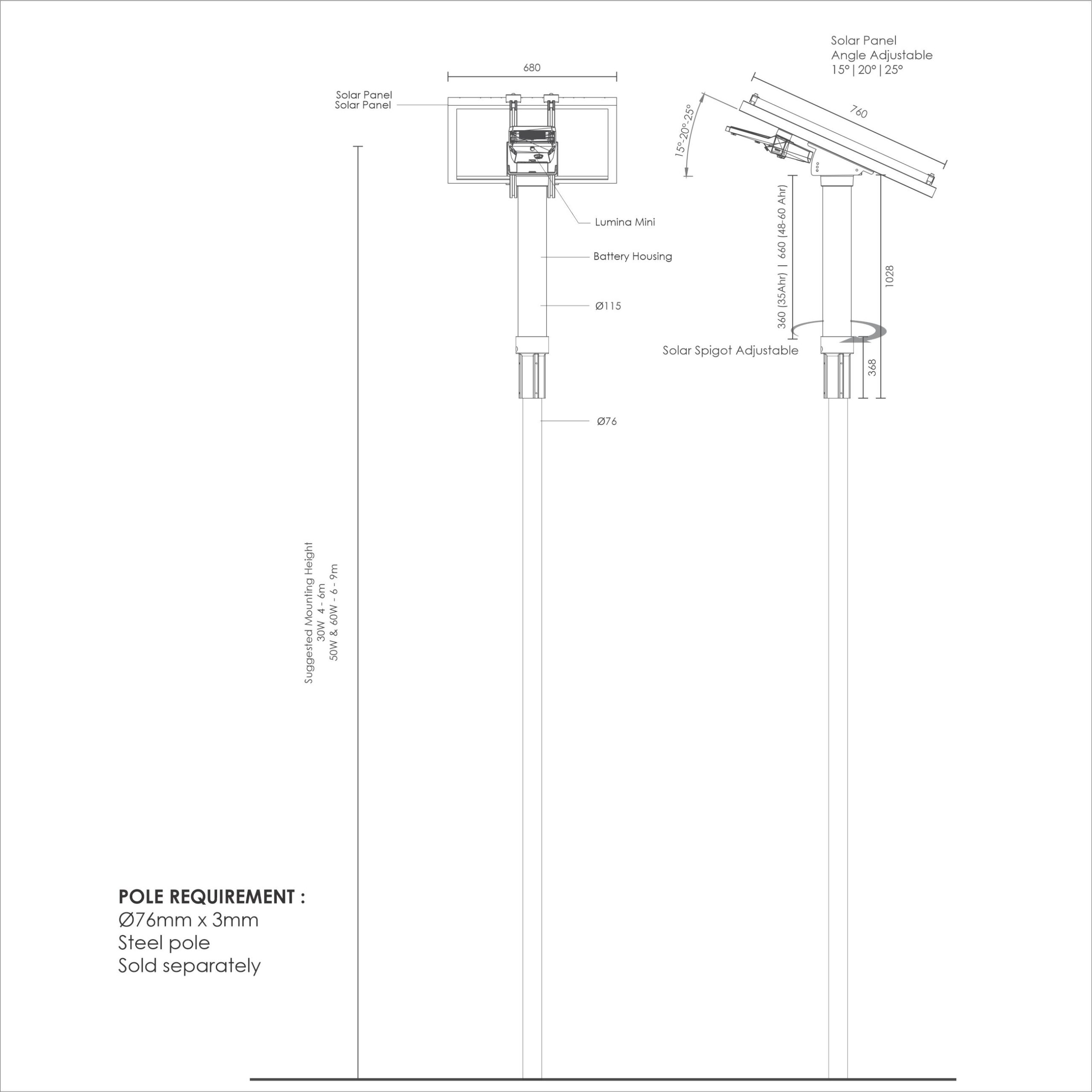

Recommended mounting height 4m to 9m

IP66

SPEC SHEET

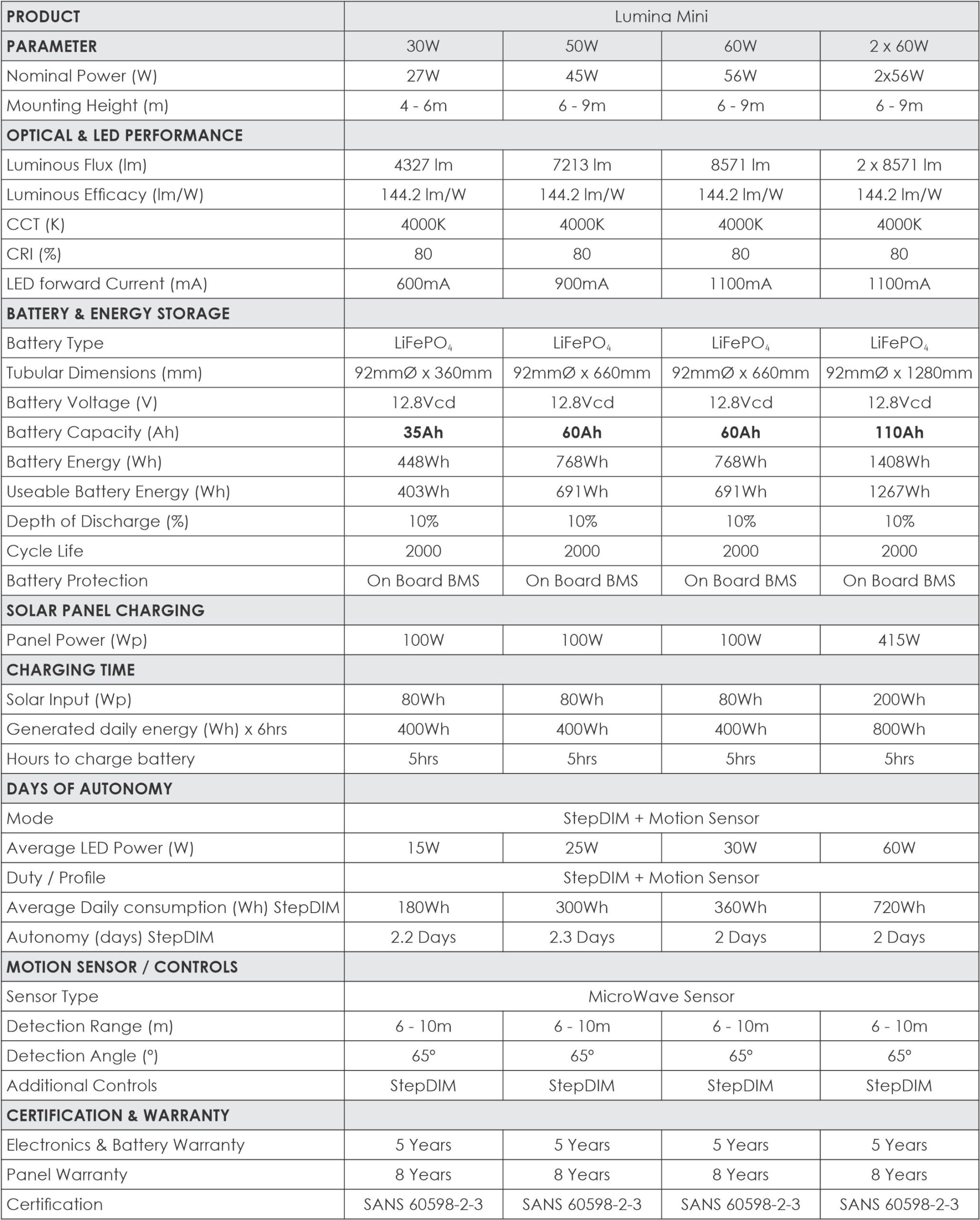

SPECIFICATIONS

MODEL NUMBER :
ZONKE

LUMINAIRE : Lumina Mini - LM6 marine grade die cast aluminium. 10 year construction guarantee.
IP66 rated LED and gear compartment. For detailed luminaire specifications refer to Regent Lumina Mini Brochure.
LIGHT SOURCE : The fitting is designed to operate a range of LED’s up to 60W. The high powered LED is mounted onto an aluminium circuit board.
HOUSING : All components are manufactured from powder coated stainless steel for coastal regions and powder coated galvanised mild steel for inland use.
MOUNTING : Plinth mounted or buried.
SOLAR PANEL : Polycrystalline solar panel, CINCO modules. Rated output 100W, 250W or 415W depending on luminaire wattage and battery size.
BATTERY : The rechargeable batteries are of different composite systems. The batteries are completely sealed and is, therefore, maintenance-free,leak proof and usable in any position.

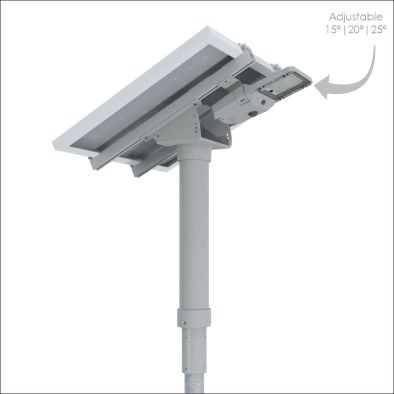

MODULE BRACKETS : Tilt adjustable bracketing system for accurate sun path adjustment.
CHARGE CONTROLLER : Smart MPPT RF programable solar luminiare charge controller. Programable using handheld RF remote.
FEATURES :
All external cabling is UV stabilised with IP67 plug connectors, No tooling required for connecting.
Integrated “hot swop”electronic components.
Theft and vandal resistant.
