Lumina Mini

This luminaire is specifically implemented in all lighting applications in squares, parking areas and landscapes. Light distribution in this fitting is asymmetrical and is used to provide a predominantly functional purpose in guiding or leading people and vehicles.

Ideal solution for street lighting and parking areas

Roadways - A4 class and B class.

Asymmetrical light distribution

Post mounted on a square or round pole

Designed to operate a range of LED’s up to 56W

Recommended mounting height 4m to 9m

IP66

SPEC SHEET

INSTALLATION INSTRUCTION

REVIT MODEL

SPECIFICATIONS

MODEL NUMBER :
LUMINA MINI

HOUSING : LM 6 die cast aluminium.
LIGHT SOURCE : The fitting is designed to operate a range of LED’s up to 56W.
LUMEN MAINTENANCE : L90B10 > 110 000 @ 25º Ta
DIFFUSER : Toughened glass or high impact acrylic offering added protection for optical lenses.
LENSES : Modular optical lenses. Material PMMA.
Various lens options available for different applications, allowing for custom solutions.
FINISH : Cast aluminium or Powder coated.
MOUNTING : Post mounted or wall mounted. Side entry with a pole adaptor available for 60mm or 76mm Ø spigots. Complies with SANS 1088-table 1.
Spigot entry 42mm Ø with a 130mm depth. Recommended mounting height 4m to 9m. Luminaire designed to face downwards at a maximum rake of 15°.
CONTROL GEAR : The electronic power supply is suitable for operation with a 220 - 240 volts. 50 hertz single phase.
Incorporating an electronic trip connector protector with surge protection 6 KV. Additional removable inline surge arrester 10 KV.
FASTENERS : All external screws are stainless steel. Cable glands are SABS approved to insulate IP67 ingress protection.
GASKET : Gaskets are manufactured from post cured silicone rubber material. Silicone gaskets perform in a wide temperature range -40° C to +200° C.
INGRESS PROTECTION : IP 66.
OPERATING TEMPERATURE : (Ta) ≤ 35° C.
SABS COMPLIANCE : SANS 60598-2-3 / SANS 475:2013
WEIGHT : 3 Kg total including control gear.
WINDAGE : Max. projected areas for mounting 0.03m2
ADDITIONAL OPTIONAL FEATURES :
LIGHTING CONTROL : Bluetooth module
DAYLIGHT SWITCH: Photocell can be incorporated.
VANDAL RESISTANT : Tamper proof latch available
DIMMING: Optional dimming is available on request.

COLOURS

BLACK (B)

WHITE (W)

MATT SILVER (M)

CHARCOAL GREY (C)

NATURAL ALUMINIUM (N)

LIGHT SOURCE

LED

The nominal flux of the LED is based on the LED manufacturers data at 30° C.
The environmental conditions of the installation will impact the efficiency of the LED’s.
Due to the continual advancement in LED technology the type of LED is subject to change.

LIGHT DISTRIBUTION

Suggested LED lens options. Various lens options available for different applications, allowing for custom solutions.

ADDITIONAL OPTIONAL FEATURES

NEMA PHOTOCELL SENSOR (OPTIONAL)

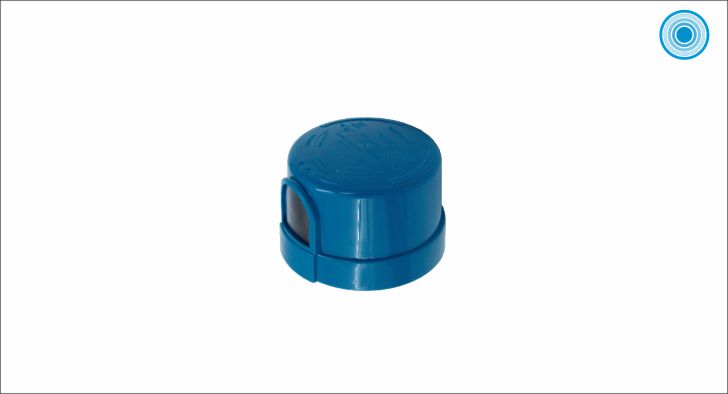

ON/OFF 3-PIN NEMA PHOTOCELL
Photocell with an integrated surge arrestor. The twist and lock feature of the photocell allows for an easy replacement of the surge arrestor.
1-10V 5-PIN NEMA PHOTOCELL
1-10V dimming Photocell with an integrated surge arrestor. The twist and lock feature of the photocell allows for an easy replacement of the surge arrestor.

stepDIM
This solution offers autonomous time based scheduling through the course of the night.
PROFILES
There are 4 predetermined profiles to choose from which best suit the application at hand

sensTECH
Selected sensors for fittings to offer multiple functions
ON/OFF
The most basic and cost effective
BASIC DIMMING
corridorFUNCTION& advanced stepDIM
ADVANCED DIMMING
corridorFUNCTION, advanced stepDIM + bluTECHSENTRY

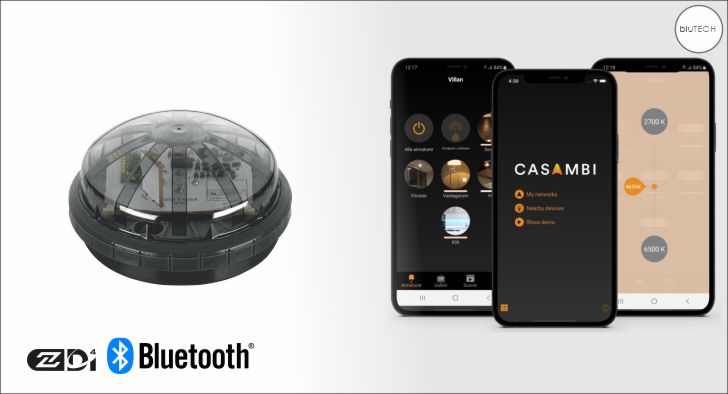

bluTECH SENTRY
A truly wireless exterior lighting control system. Scalable & customizable to perfectly suit any application
TIME SCHEDULING
Autonomous time based scheduling with override
MOTION CONTROL
Motion control can be overlayed onto autonomous dimming schedules
GROUP/SCENE CONTROL
Can recall preset scenes to set moods for venue functions
STAND-ALONE/BMS/IOT
Can operate as a stand-alone system, integrate into a Building Management System & can connect to the cloud for data analytics.

APPLICATION AREAS

Indoor or outdoor application.
Roadways - A4 class and B class.
Asymmetrical distribution.
Parking areas.
Parks and gardens.
Residential areas.
Squares and plazas.

Lumina Mini application

TECHNICAL

DIMENSIONS MM

MECHANICAL FEATURES

EXPLODED VIEW

LUMINA MINI HEAT SINK
Designed to Maximise the surface area of the Lumina Mini to disperse the heat away from the LED

LUMINA MINI LID
Hinged lid prevents separation when opened.

NEMA PHOTOCELL SENSOR (OPTIONAL)
ON/OFF 3-PIN IP65 NEMA Photocell with an integrated surge arrestor. The twist and lock feature of the photocell allows for an easy replacement of the surge arrestor.

ACCESSORIES
