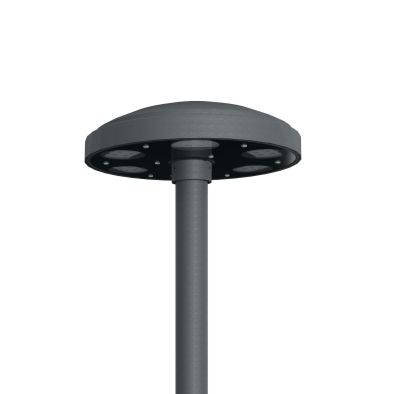

Malta Ray

This luminaire is specifically implemented in all lighting applications in street, squares, parking areas and landscapes. Excellent downward light distribution. Ideal for green buildings.

Ideal solution for street lighting and parking areas

Street Lighting CLASS - B | C

Symmetrical or Asymmetrical light distribution
Designed to operate a range of LED’s up to 78W
Post mounted
Recommended mounting height 3.5m to 5m

IP65

SPEC SHEET

SPECIFICATIONS

MODEL NUMBER :
MALTA RAY

HOUSING : LM 6 die cast aluminium extruded aluminium.
LIGHT SOURCE : The fitting is designed to operate a 78W LED.
Recommended LED 4000 Kelvin Natural white with CRI >70.
LUMEN MAINTENANCE : L95B10 100000hrs @ 25º Ta.
DIFFUSER : UV stabilised high impact acrylic.
FINISH : Powder coated.

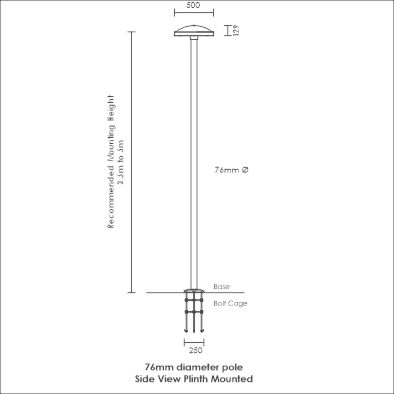

MOUNTING : Post mounted or side entry.
Recommended mounting height 3.5m to 5m.
Spigot entry 76mm Ø with a depth of 80mm. For detailed mounting specifications refer to pole and accessories section.
CONTROL GEAR : The electronic power supply is suitable for operation with a 220 - 240 volts. 50 hertz single phase.
FASTENERS : All external screws are stainless steel.
INGRESS PROTECTION : IP 65.
OPERATING TEMPERATURE : (Ta) ≤ 35° C.
WEIGHT : 8 Kg total including control gear.
WINDAGE : Max. projected areas for mounting 0.024m² .
FEATURES : Surge arrester to protect LED supply.

COLOURS

BLACK (B)

WHITE (W)

CHARCOAL GREY (C)

MATT SILVER (M)

LIGHT SOURCE

LED

The Nominal flux of the LED is based on the LED manufacturer's data at 25°C.
At an ambient temperature of 30° C, the lumen maintenance is > 90% at 101 000 hours and > 80% at 102 000 hours.
The environmental conditions of the installation will impact the efficiency of the LED's.
Due to continual advancement in LED technology the type of LED is subject to change.

LIGHT DISTRIBUTION

Suggested LED lens options. Various lens options available for different applications, allowing for custom solutions.
