MODEL NUMBER :
RAY

HOUSING : LM 6 die cast aluminium extruded aluminium.

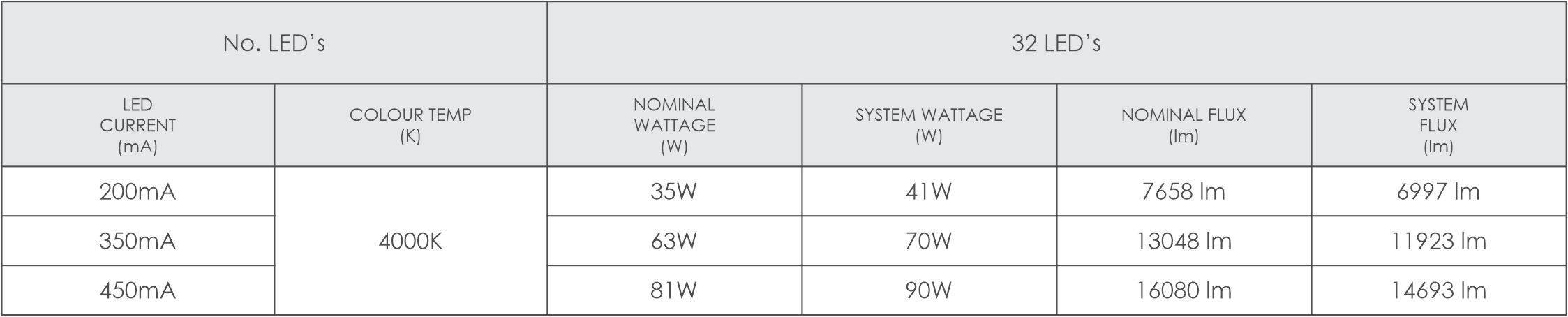

LIGHT SOURCE : The fitting is designed to operate a 90W LED. The high powered LED is mounted onto an aluminium circuit board.
Recommended LED 4000 Kelvin Natural white with CRI >70.
LUMEN MAINTENANCE : L95B10 100000hrs @ 25º Ta.
DIFFUSER : UV stabilised high impact acrylic.

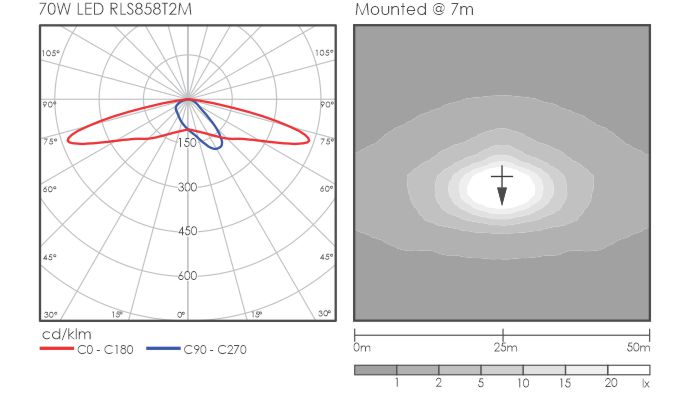

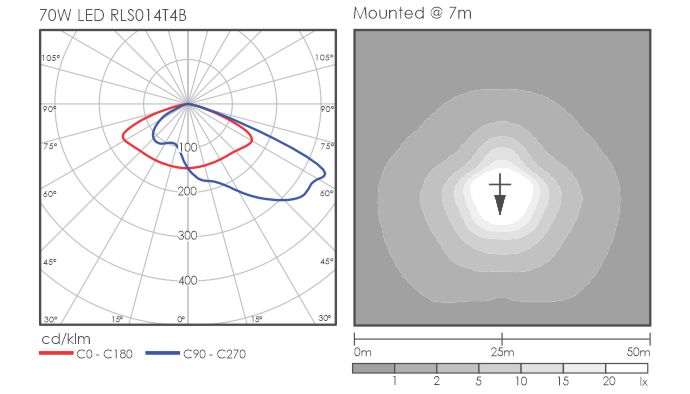

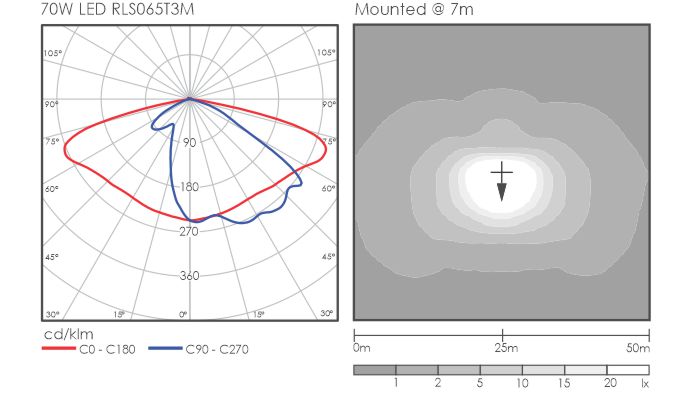

LENSES : Modular optical lenses are used. Material PMMA. Various lens options available for different applications, allowing for custom solutions.
FINISH : Powder coated.
MOUNTING : Post mounted.

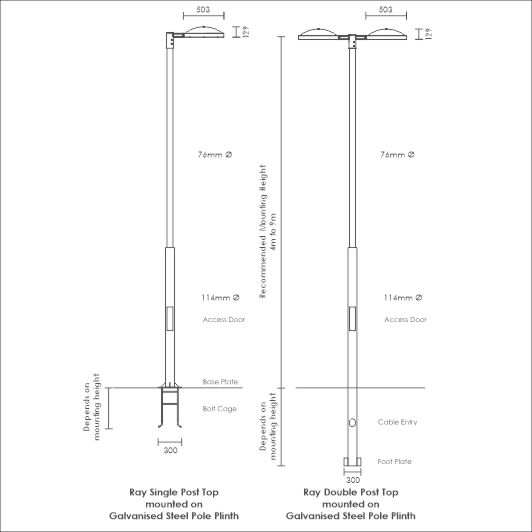

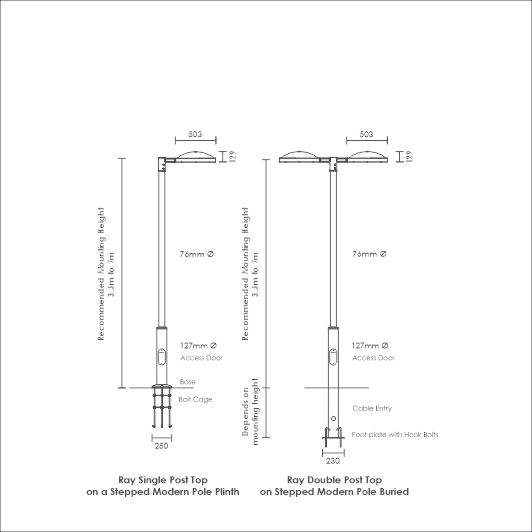

Recommended mounting height 3.5m to 9m.

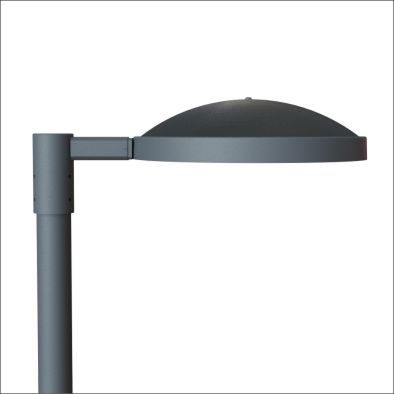

Spigot entry 42mm Ø with a 125mm depth or Side Mounted roto bracket which attaches to a 76mm Ø pole.
For detailed mounting specifications refer to pole and accessories section.
CONTROL GEAR : The electronic power supply is suitable for operation with a 220 - 240 volts. 50 hertz single phase.
FASTENERS : All external screws are stainless steel. Cable glands are SABS approved to insulate IP67 ingress protection.
INGRESS PROTECTION : IP 65.
OPERATING TEMPERATURE : (Ta) ≤ 35° C.
WEIGHT : 8 Kg total including control gear.
WINDAGE : Max. projected areas for mounting 0.0514m² .
FEATURES : Surge arrester to protect LED supply.
