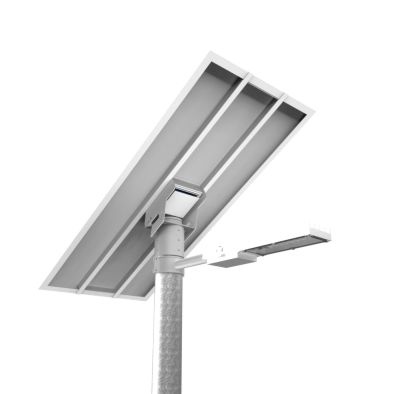

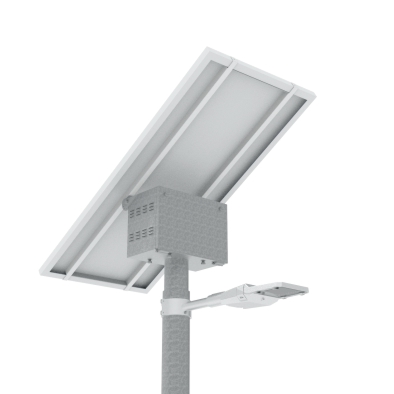

KHANYA
This luminaire is specifically implemented in all lighting applications in street, parking areas and landscapes. Light distribution in this fitting is asymmetrical and is used to provide a predominantly functional purpose in guiding or leading people and vehicles.
Ideal solution for street lighting and parking areas
Street Lighting CLASS - A4 | B | C
Asymmetrical light distribution.
Compatible with the Istria, Modra or Lumina Mini Fittings
All components are manufactured from powder coated stainless steel for coastal regions and powder coated galvanised mild steel for inland use.

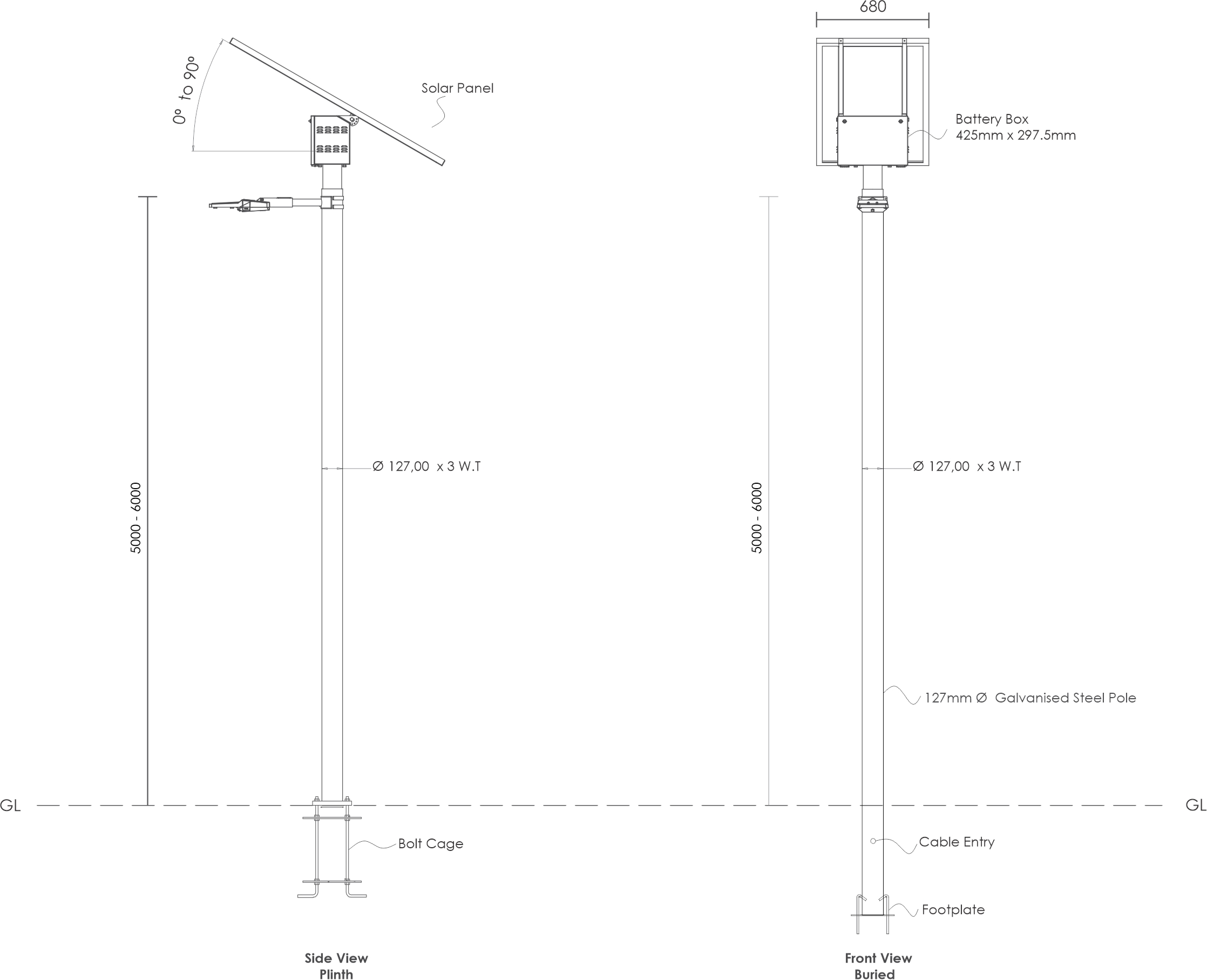

Recommended mounting height 5m to 6m
IP66
MODEL NUMBER :
KHANYA

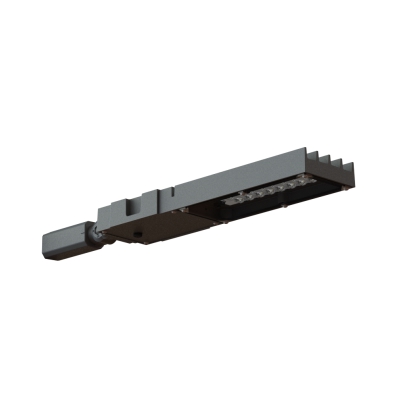

SUGGESTED LUMINAIRE : Istria, Modra or Lumina Mini Fittings - LM6 marine grade die cast aluminium. 10 year construction guarantee.
IP66 rated LED and gear compartment.
LIGHT SOURCE : The fitting is designed to operate a range of LED’s up to 50W.
The LED is a Samsung high powered LED mounted onto an aluminium circuit board incorporating thermal protection.
HOUSING : All components are manufactured from powder coated stainless steel for coastal regions and powder coated galvanised mild steel for inland use.

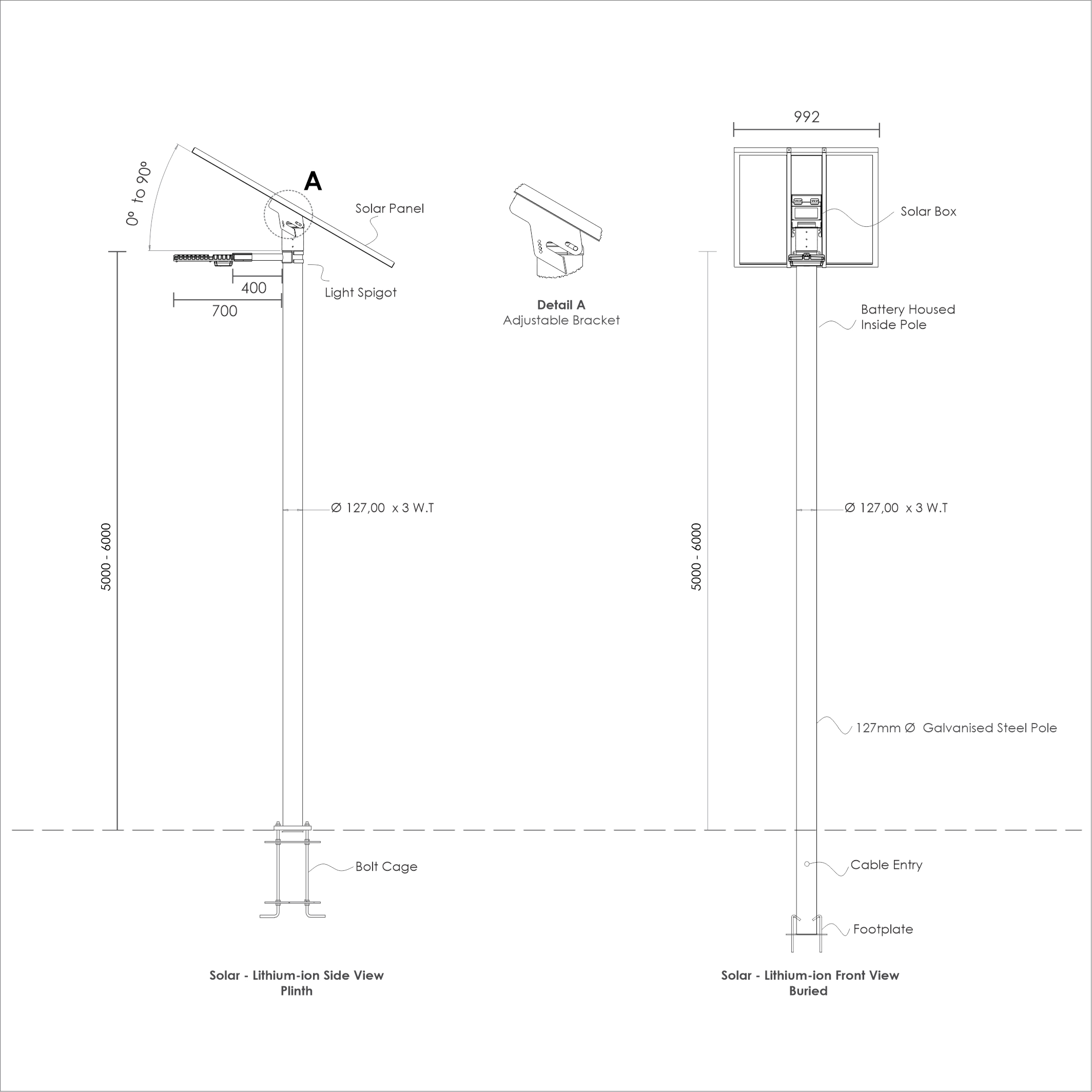

MOUNTING : Plinth mounted or buried.
SOLAR PANEL : Polycrystalline solar panel, CINCO modules. Rated output 160 - 200W.
BATTERY : The rechargeable batteries are of different composite systems. The batteries are completely sealed and is, therefore, maintenance-free,leak proof and usable in any position.

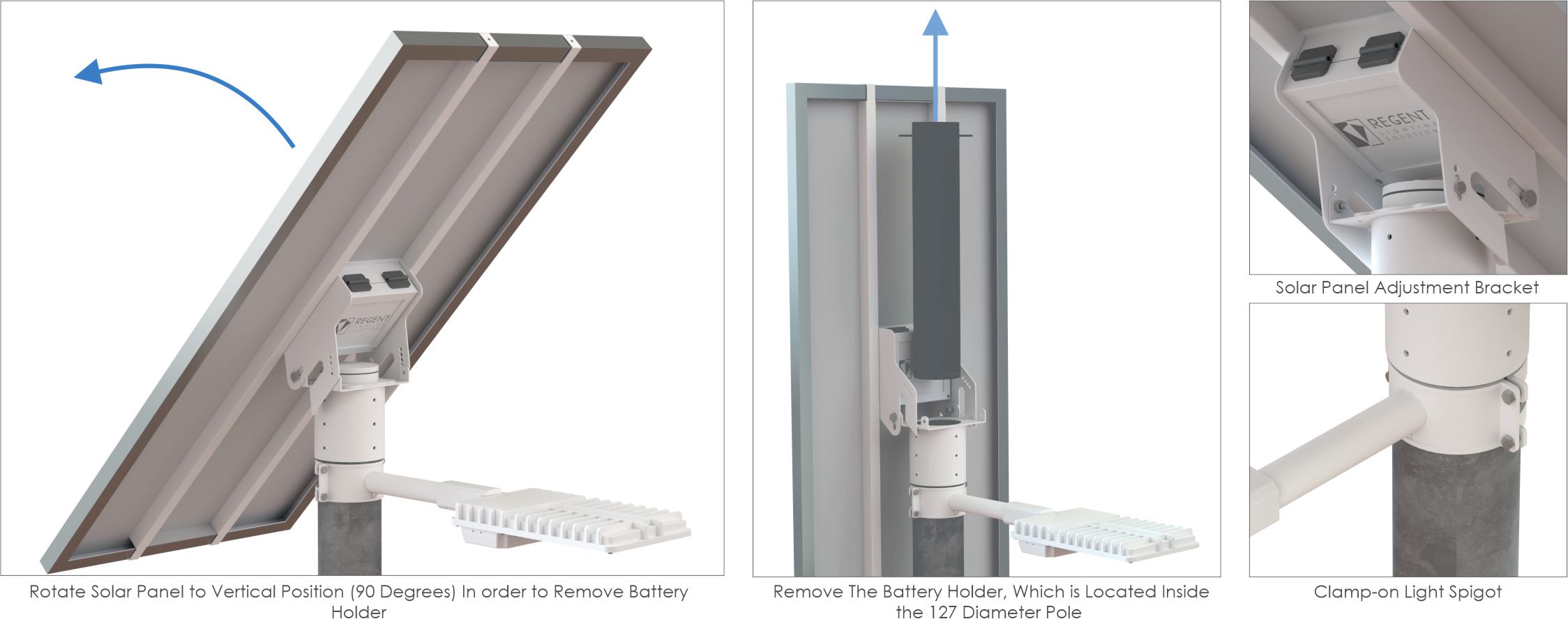

MODULE BRACKETS : Tilt adjustable bracketing system for accurate sun path adjustment.
CHARGE CONTROLLER : Victron SmartSolar MPPT charge controller. The SmartSolar charger gathers energy from the solar panels, and stores it in the batteries. Using the latest, fastest technology, SmartSolar maximises this energy-harvest, driving it intelligently to achieve full charge in the shortest possible time. SmartSolar maintains battery health, extending its life. With a built-in Bluetooth Dongle users are able to remotely monitor and control their SmartSolar MPPT.
ACCESSORIES : Roto bracket, which allows for adjustment on the horizontal plane for luminaire.

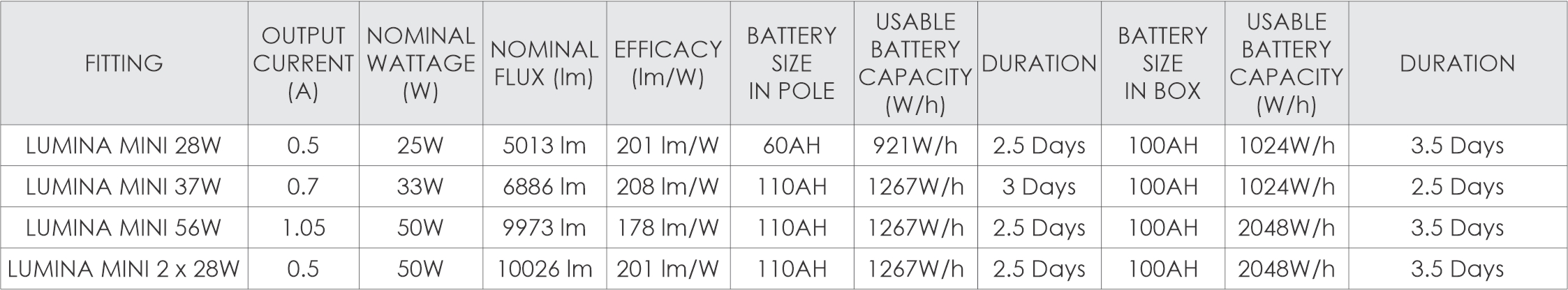

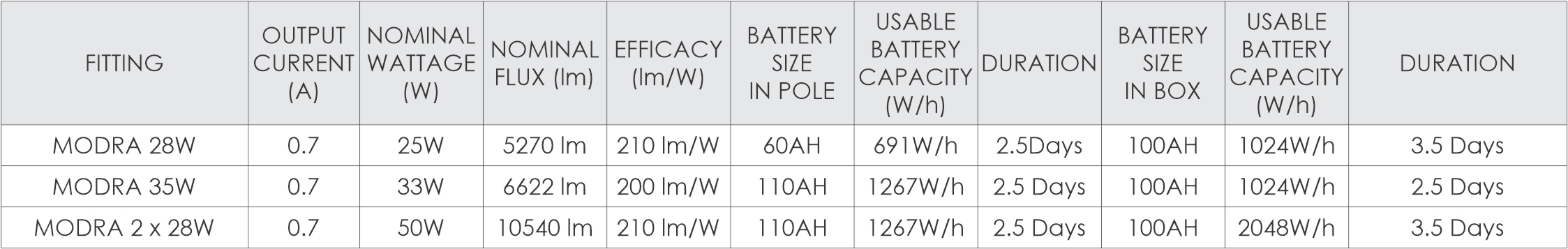

FEATURES : Each system is designed to operate optimally for 12 hour night cycle and up to four nights operation without system charge (See Configurations Matrix).
All external cabling is UV stabilised with IP67 plug connectors, No tooling required for connecting.
Integrated “hot swop”electronic components.
Theft and vandal resistant.
- Outdoor application.
- Asymmetrical distribution.
- Street Lighting.
- Area Lighting
- Security Lighting
- Parking Areas
- Roads in off grid areas
- Road works and traffic control

Lithium-ion batteries are distinctly different from their lead-acid equivalents. They also provide more advantages in terms of performance and efficiency. The first noticeably aspect of Lithium-ion systems is the compacted size of the batteries. This is because Lithium-ion has a higher energy density compared to its lead-acid counterparts making it smaller and lighter.

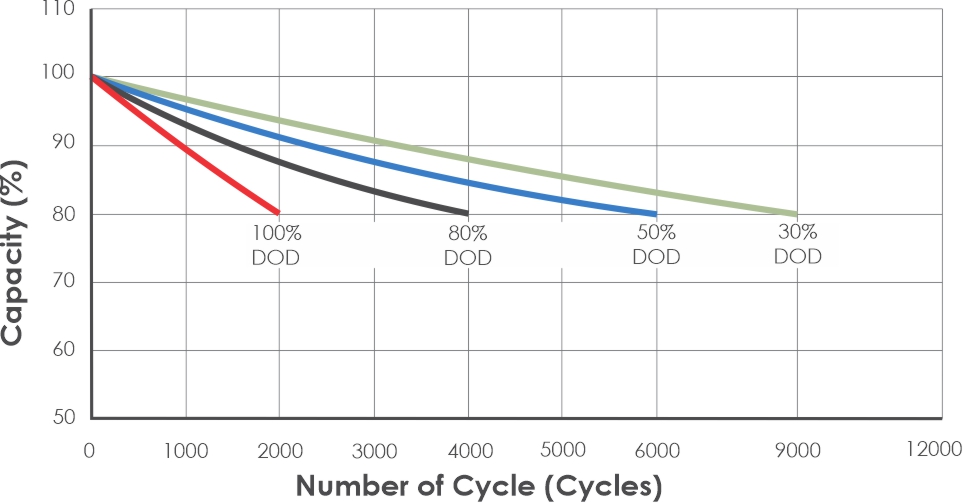

The Depth-Of-Discharge (DOD) of a Lithium-ion systems are also very high. These batteries are able to discharge close to 70% without damaging the battery. Lithium-ion systems also has a much longer cycle life compared to lead-acid Batteries.
Lithium-ion Batteries are incorporated with a Battery Management System (BMS) which constantly monitors the condition of the battery. This allows the battery to disconnect if it is over charged or discharged to a very low voltage. The BMS prevents the battery from excessive draining and over charging which prolongs the battery life.
Lithium-ion Battery Pros
- Long Cycle Life
- Lower Maintenance Cost
- Light Weight
- More Compacted
- Higher Depth-of-Discharge
- Built-in BMS
- Smaller Solar Box Design
Lithium-ion Battery Limitations
- Higher Cost
- Sensitive to Temperature
