MODEL NUMBER :

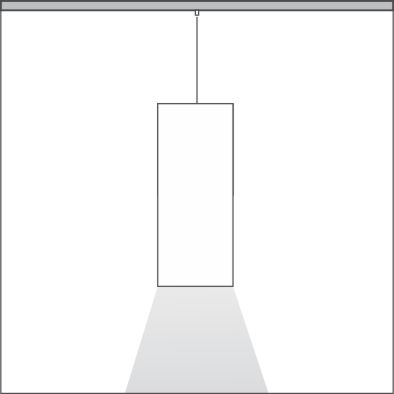

LINEAR ALDO DOWNLIGHT 300mm
LINEAR ALDO DOWNLIGHT 600mm
LINEAR ALDO DOWNLIGHT 900mm
LINEAR ALDO DOWNLIGHT 1200mm
LINEAR ALDO DOWNLIGHT 1500mm
LINEAR ALDO DOWNLIGHT CONTINUOUS

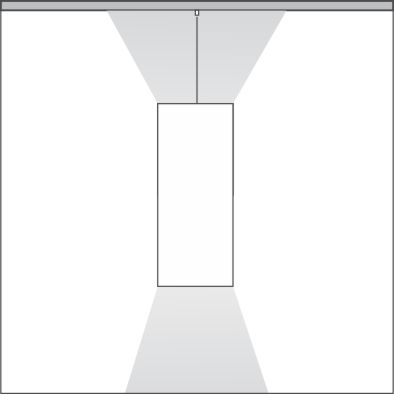

LINEAR ALDO UP & DOWN LIGHT 1200mm
LINEAR ALDO UP & DOWN LIGHT 1500mm
LINEAR ALDO UP & DOWN LIGHT CONTINUOUS

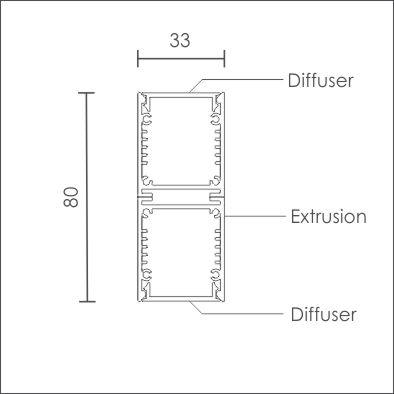

HOUSING : Extruded aluminium.

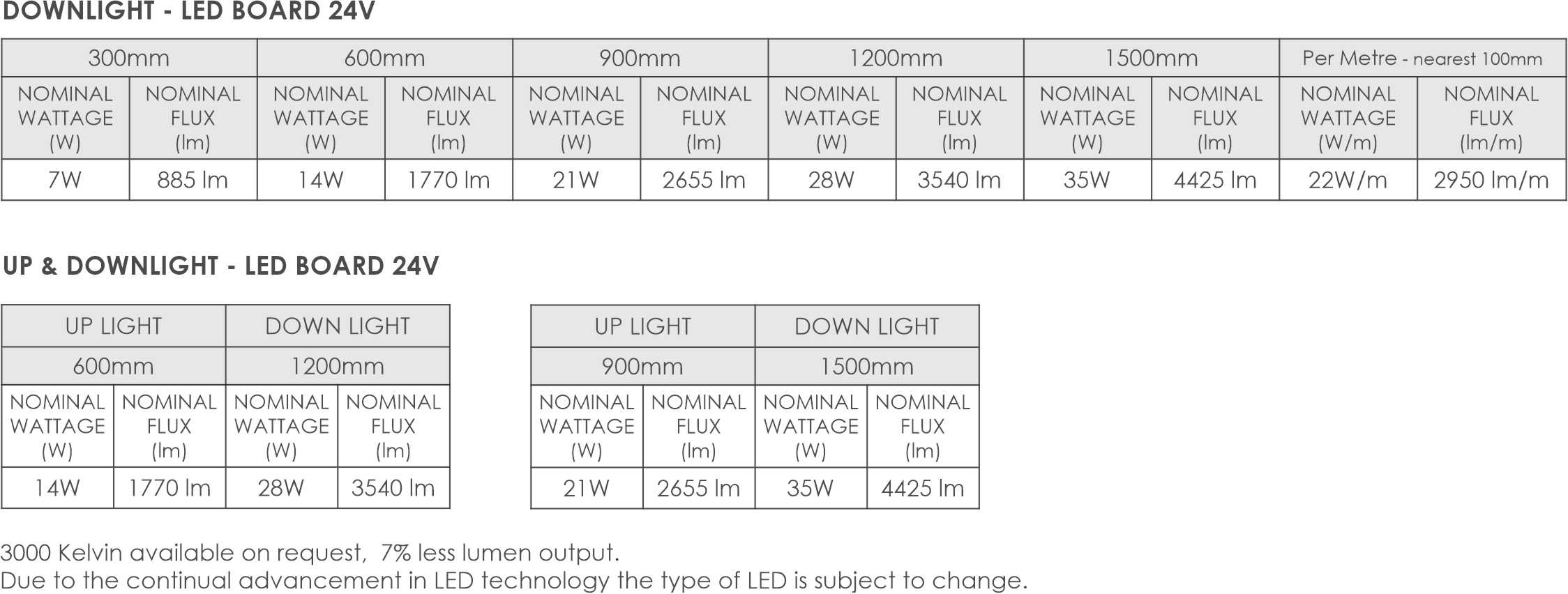

LIGHT SOURCE : The fitting is designed to operate a LED up to 24W/m.
DIFFUSER : PMMA Matt Opal Profile + Hi Mt. LT67 transmission diffuser.
FINISH : Powder coated.
MOUNTING : Suspended. Downlight only light element or up and downlight element.
Suspension fixing: soffit or ceiling “T”. Hanging detail : stainless steel wire and cabtyre.
Adjustable wire suspension which allows for horizontal and vertical adjustment.
ACCESSORIES : Decorative ceiling cup to accommodate ceiling adaptor and connector block.
CONTROL GEAR : The electronic power supply is suitable for operation with a 220 - 240 volts. 50 hertz single phase.
APPLICATION : Suitable for indoor use only.
Operating Temperature (T_a) -20° C to +25° C.
FEATURES : Slender LED lines of light set in an architectural environment are the essence of the Linear Aldo, with its simple elegance and adaptability it accommodates most design applications. The extruded aluminium housing offers a precise in-line appearance that complements open space design plans. Fittings can be mounted in a continuous line, with an up and down light element. Integrated control gear.
Continuous fittings are designed according to site application.

DIMMING INTERFACE OPTION AVAILABLE :

• DALI
• 1-10V
• Push dimming
• Corridor Function
• DSI

N.B. Ceiling details need to be supplied to design for the layout.
