SIGNA TAS 600x600

The Signa Tas combines advanced LED technology with double luminous panels to generate optimal light uniformity and enhanced visual comfort. It an ideal choice for commercial office spaces, schools, hospitals and retail merchandising areas.

Ceiling mounted recessed

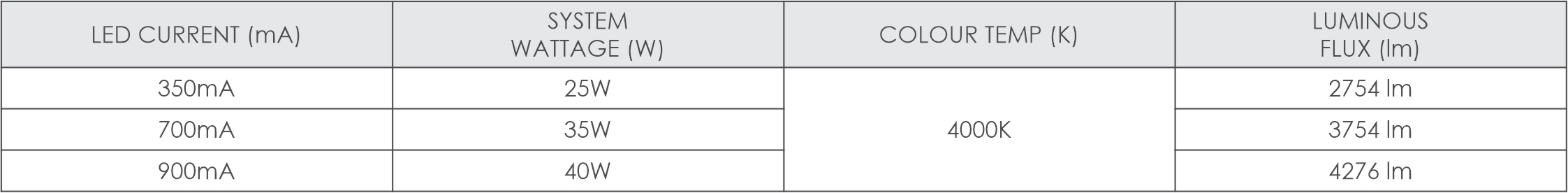

25W | 4000K | 2754 lm
35W | 4000K | 3754 lm
40W | 4000K | 4276 lm

Dimensions 595mm x 595mm x 32mm

DALI dimmable on request

SPEC SHEET

SPECIFICATIONS

MODEL NUMBER :
SIGNA TAS 600x600

HOUSING : Cold roll steel 0.8mm.
LIGHT SOURCE : The fitting is designed to operate a 40W LED.
DIFFUSER : PMMA.
MOUNTING : Ceiling mounted recessed. Fits into a ceiling tile.
COLOUR CONSISTENCY : Mac Adams 2 SDCM.
LOR % : 70.8%
LED EFFICIENCY : 176.8 lm/W
SYSTEM EFFICIENCY : 106.9 lm/W.
CCT : 4000K.
CRI : > 80.
DIMENSIONS : 592mm x 592mm x 32mm.
CUT OUT : 570mm x 570mm
APPLICATION : Suitable for indoor use only.
Operating Temperature (Ta) - 20° C to +30 ° C.
Weight : 7 Kg.
FEATURES : Dimmable and Emergency options available on request.
