LUXON OPAL BACKLIT 600x600
The Luxon Opal backlit panel is an attractive LED option for ceilings. Highly efficient FLICKER FREE LED which is backlit. These panels are an ideal solution for offices, commercial applications, warehousing or storage lighting, creating a bright modern look to your work place.
Ceiling recessed, surface mounted or suspended

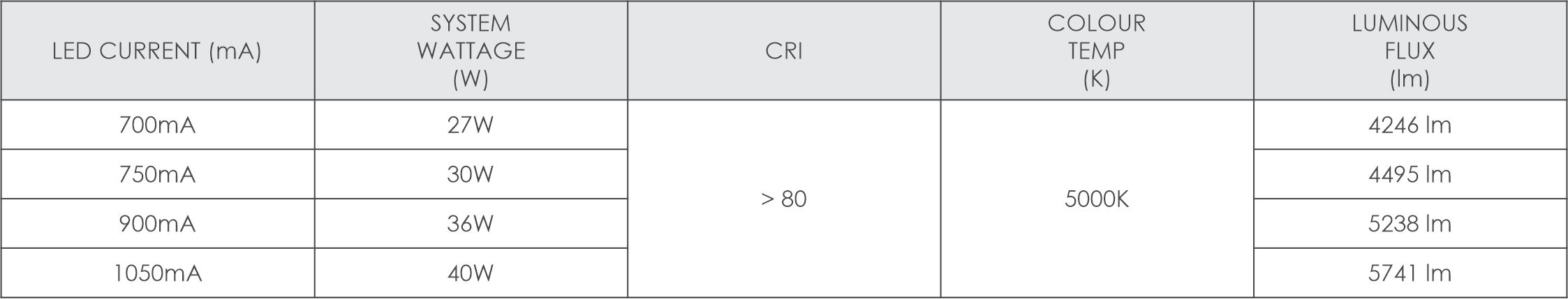

27W | 4000K | 4065 lm
30W | 4000K | 4352 lm
36W | 4000K | 5136 lm
40W | 4000K | 5933 lm
Dimensions 595mm x 595mm x 30mm
Efficiency : >150lm/W
Plug and play remote driver for easy installation
DALI dimmable on request
MODEL NUMBER :
LUXON OPAL BACKLIT 600x600
HOUSING : Seamless aluminium extruded frame.
DIFFUSER : Opal diffuser.
LIGHT SOURCE : The fitting is designed to operate a LED up to 40W.
FINISH : Powder coated.
MOUNTING : Recessed, surface mounted or suspended.
ACCESSORIES : Surface mounted frame and recessed mounted frame for plaster board ceiling, available on request. 2 x Aluminium ceiling tray which allows the luminaire to fit into a standard ceiling tile of 600mm x 1200mm.
POWER SUPPLY : 5 Year Warranty. Flicker free.
LUMEN MAINTENANCE : 55000h (L70).
SYSTEM EFFICIENCY : >150 lm/W.
CCT : 4000K.
CRI : >80.
DIMENSIONS : 595mm x 595mm x 30mm.
APPLICATION : Suitable for indoor use only.
OPERATING TEMPERATURE : (Ta) - 20° C to +30 ° C.
WEIGHT : 2 Kg.
INPUT VOLTAGE : 100 ~ 240V AC
INPUT FREQUENCY : 50/60 Hertz
FEATURES : 50% energy saving, high brightness and even light.
Fast start, no flickering and noise.
The latest high efficiency constant current driver, anti-wave interference.
Lead-free, green environmental protection, meets ROHS requirements.
Plug and play remote driver for easy installation.
1.5kV surge protected.
Supplied with 5 amp plug set.
Dali dimmable option available on request.
Emergency available on request.
LED - OPAL DIFFUSER - UGR <22
Due to the continual advancement in LED technology the type of LED is subject to change.
REMOTE EMERGENCY PACK
Lithiuim iron phosphate battery
Test switch & LED charge indicator with holder
Charge time : 16 hours
LED INDICATOR HOLDER
HOLE CUT OUT - 20mm Ø.
- Indoor application.
- Offices.
- Commercial spaces.
- Education buildings.
INSTALLATION INSTRUCTIONS
Installation Instructions available on request
DIMENSION MM
