MODEL NUMBER :
LINEAR NEX

HOUSING : Extruded aluminium .

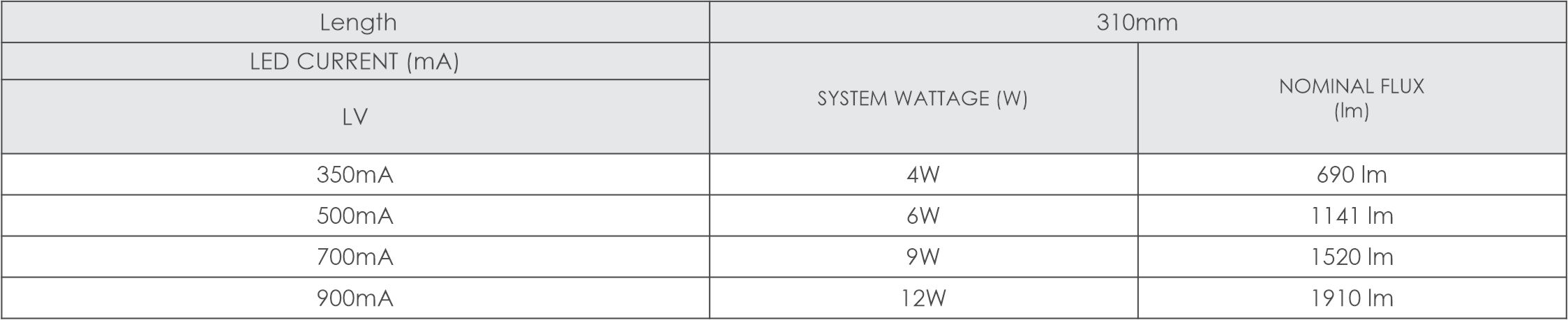

LIGHT SOURCE : The fitting is designed to operate a LED up to 64W.
DIFFUSER : UV stabilised opal acrylic 050.
FINISH : Powder coated.
MOUNTING : Wall mounted or ceiling mounted.
Surface mounted, suspended, clips onto ceiling “T”. Options available for soffit or concrete mounting.
LUMEN MAINTENANCE : 50000h (L90B10).
CCT : 4000K or 3000K .
CRI : 80.
SUSPENSION ACCESSORIES : Stainless steel wire or 12mm Rod complete with decorative ceiling cups. The adjustable wire suspension allows for horizontal and vertical adjustment.
CONTROL GEAR : The electronic power supply is suitable for operation with a 220 - 240 volts. 50 hertz single phase. Dimmable options available.
APPLICATION : Suitable for indoor use only.
OPERATING TEMPERATURE : (Ta) - 20° C to +25 ° C.
FEATURES : Removable gear tray assembly for easy installation and maintenance.
Slender lines of light set in an architectural environment are the essence of the Linear Nex, with its simple elegance and adaptability it accommodates most design applications. The extruded aluminum housing offers a precise in-line appearance that complements open space design plans.
Installation instructions available on request or on the website.
NOTE : Ceiling details need to be supplied to design for the layout.
