MODEL NUMBER :
UNO

HOUSING : Extruded aluminium and PC.
LIGHT SOURCE : The individual LED operates up to 3.2W. Optional up-light 24W/m.

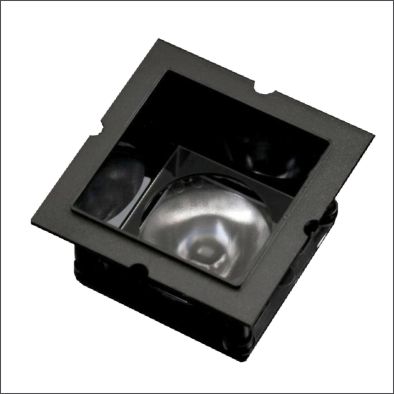

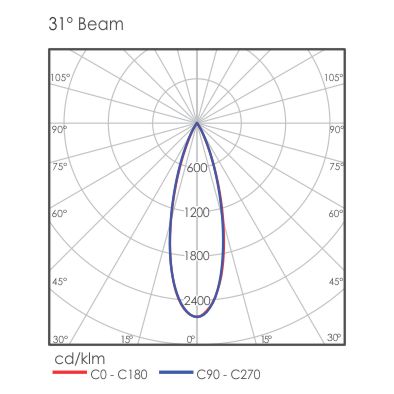

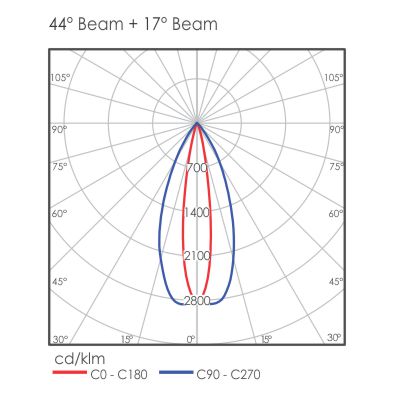

BEAM ANGLE : 20°, 31° or 44° or 44°+17° anti-glare optical reflector.
MOUNTING : Wall mounted or ceiling mounted. Recessed, surface mounted, semi recessed or suspended. Suspension fixing: soffit or ceiling “T”. Hanging detail : stainless steel wire and cabtyre. Adjustable wire suspension which allows for horizontal and vertical adjustment.
LUMEN MAINTENANCE : 90000h (L90B10) @ 65° C.
CCT : 4000K or 3000K.
CRI : 80.
SUSPENSION ACCESSORIES : Stainless steel wire or 12mm Rod complete with decorative ceiling cups. The adjustable wire suspension allows for horizontal and vertical adjustment.
CONTROL GEAR : The electronic power supply is suitable for operation with a 220 - 240 volts. 50 hertz single phase. Control gear is remote or can be integrated depending on application.
APPLICATION : Suitable for indoor use only.
Operating Temperature : (Ta) - 20° C to +25 ° C.

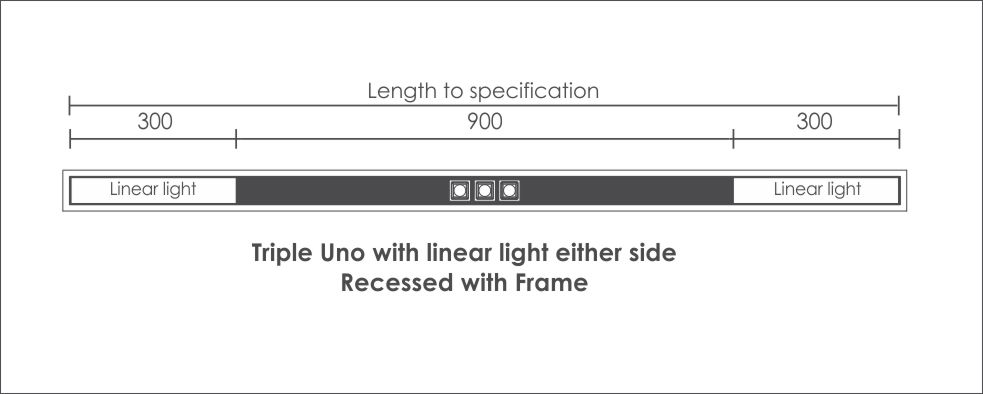

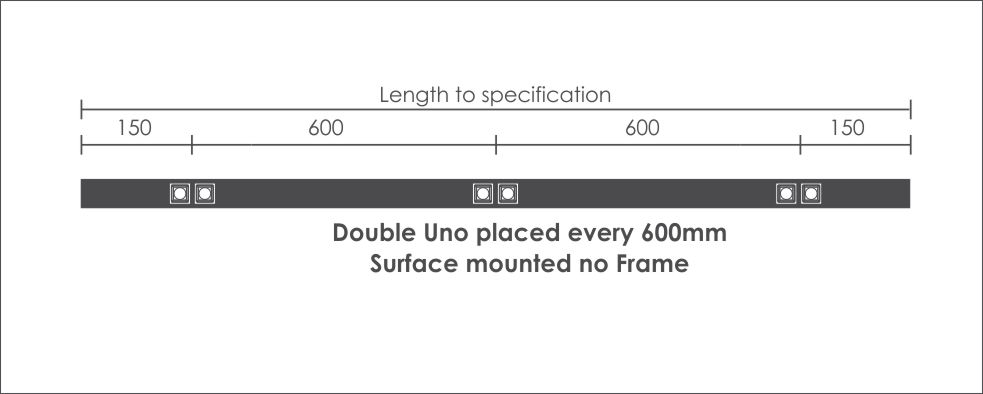

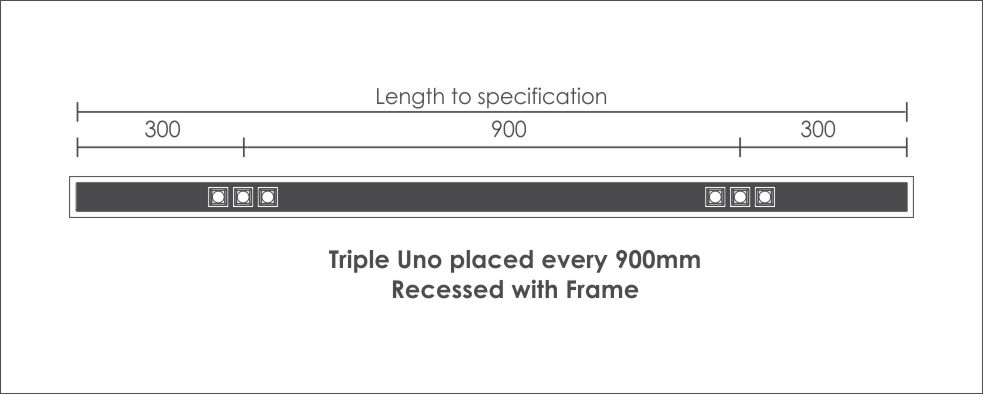

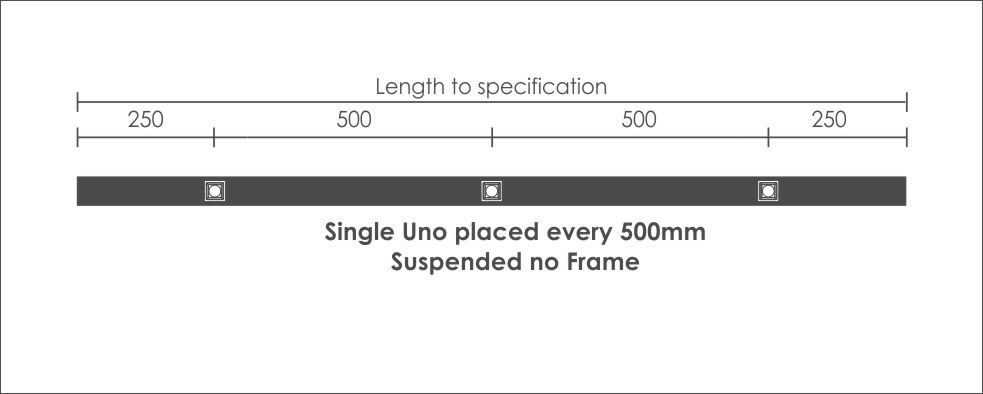

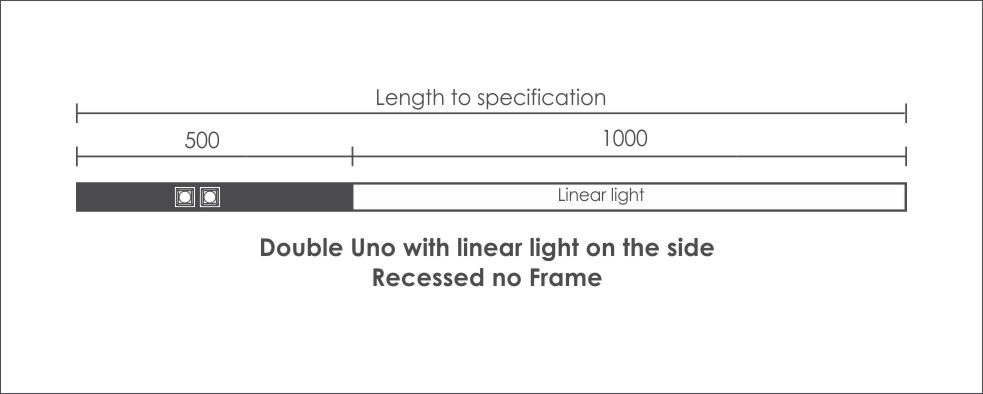

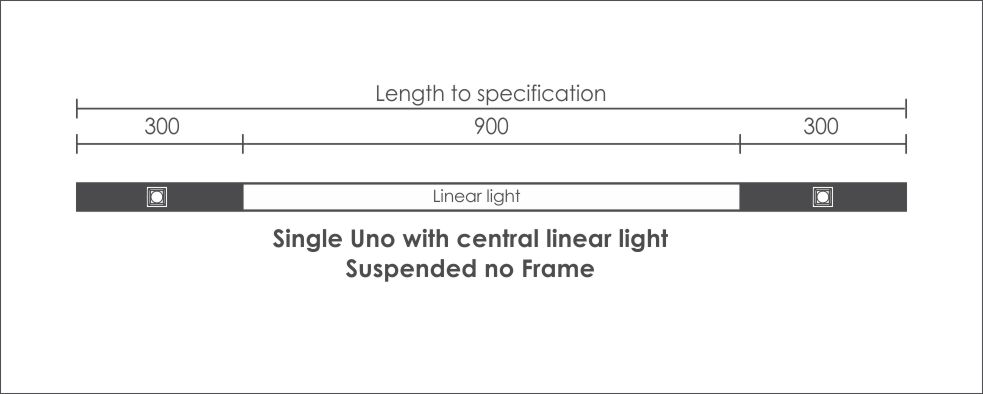

FEATURES : The extruded aluminium housing offers a precise in-line appearance that complements open space design plans. Various layouts can be developed to suit any lighting requirement with individual or continuous lengths. The Uno can be placed individually or combined with linear light elements.

N.B. Ceiling details need to be supplied to design for the layout.
