E-LINE
The E-Line is a sleek, modern locally manufactured luminaire providing complete freedom to sculpt light exactly where you need it. The system features seamless linear modules, precise corner connectors, and integrated spotlight modules, allowing you to add functional accent lighting within a single, continuous run.
Surface | Suspended | P2000 trunking

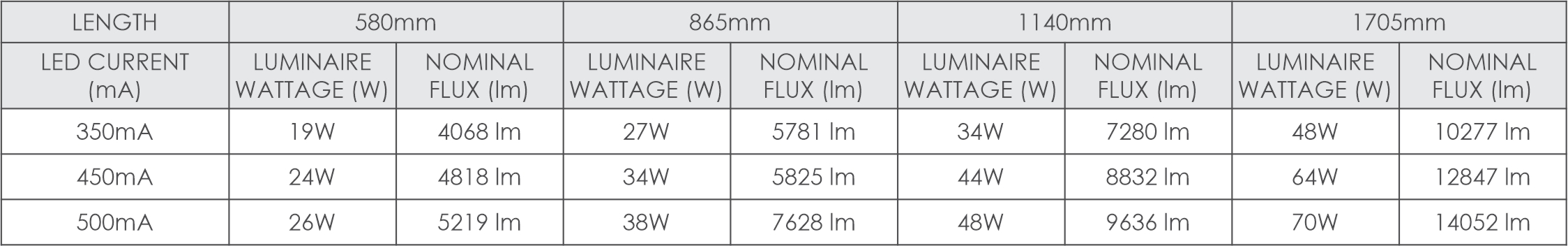

LIGHT MODULE S
580mm | 4000K | 26W | 5219 lm
865mm | 4000K | 38W | 7628 lm
1140mm | 4000K | 48W | 9639 lm
1705mm | 4000K | 70W | 14052 lm
2250mm | 4000K | 82W | 15498 lm
2800mm | 4000K | 115W | 24621 lm
ACCESSORIES

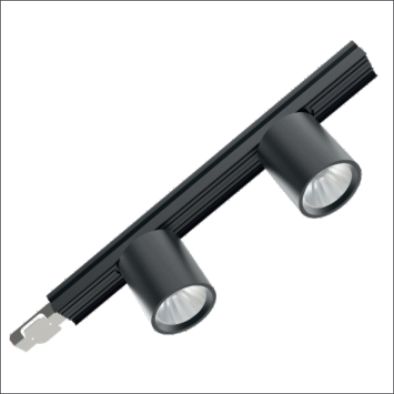

Corner Module | Spot Light Corner | Spot light module | Wall wash

MODEL NUMBER :
E-LINE
HOUSING : Extruded aluminium.
LIGHT SOURCE : The fitting is designed to operate a range of LED’s up to 115W.
OPTICS : Modular optical lenses.
107° - Material - PMMA.
90º, Asymmetric & Double Asymmetric - Material - PC
MOUNTING : Suspension, surface mounted or P2000.
ACCESSORIES : Modules available - Corner, corner spot light, spot light or wall wash.
Ceiling, surface, P2000 or 30º surface mounting clip.
SYSTEM EFFICIENCY : 180 lm / W.
OPERATIONAL TEMPERATURE RANGE : -10° C ~ +40° C.
LUMEN MAINTENANCE : At an ambient temperature of 25° C, the lumen maintenance is L80B10. Lifespan: > 90 000hrs.
CCT : 3000K, 4000K or 5000K.
CRI : 80 or 90 on request.
LED DRIVER : 5 Years / 100 000 Hours
IN RUSH CURRENT : 32A at 230VAC for 251µs.
LED DRIVER SURGE PROTECTION : 2KV
OPTIONAL SURGE PROTECTION : 10KA – 10KV (IEC 61643-11)
APPLICATION : Suitable for indoor use only.
INGRESS PROTECTION : IP20.
DIMMING : DALI

HIGH VOLTAGE LED - HV ZHAGA BOARD | CRI80 | 4000 Kelvin
LOW VOLTAGE LED - ZHAGA BOARD | CRI80 | 4000 Kelvin
* The product is offered with either Low Voltage (LV) or High Voltage (HV) Zhaga boards depending on length and driver availability.
- 3000 Kelvin available on request, 7% less lumen output.
- CRI90 available on request.
- Due to the continual advancement in LED technology the type of LED is subject to change.
OPTIONAL WALL WASH
LINEAR 17 x 8.5 - 22W/m 4000K
- Indoor application.
- Asymmetrical or symmetrical distribution.
- Retail lighting.
- Commercial lighting.
- Warehouse lighting.
- Industrial lighting.
