MODEL NUMBER :
NIMBUS PRO

HOUSING : Polycarbonate and ABS.
DIFFUSER : UV stabilised polycarbonate diffuser. IK10.
LIGHT SOURCE : The fitting is designed to operate a range of LED’s up to 55W.
MOUNTING : Wall, ceiling or suspended mounted. Suitable for continuous row mounting. Multi purpose bracket allows for surface or suspended mounting.
LUMINAIRE EFFICACY : Up to 181 lm/W.
LUMEN MAINTENANCE : L95 50 000 hours, L90, 100 000 hrs.
CCT : 4000K or 5000K.
CRI : >80.

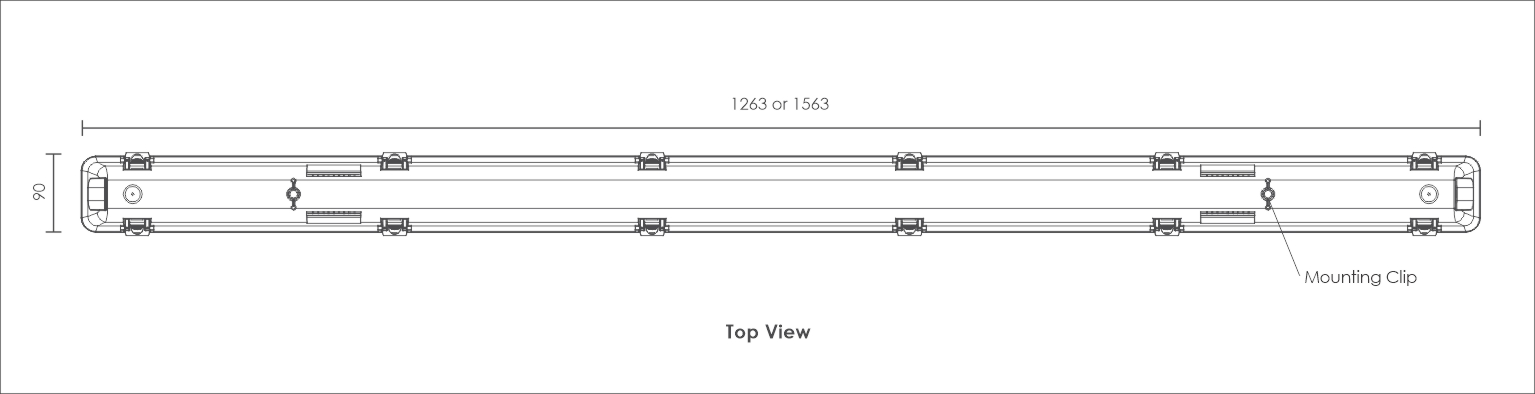

DIMENSIONS : 90mm x 90mm x 1263mm
90mm x 90mm x 1563mm
CONTROL GEAR : The electronic power supply is suitable for operation with a 220 - 240 volts. 50 hertz single phase.
FASTENERS : SS316 Stainless steel latches to keep diffuser in place.
WIRING : Rigid wire, cross section 0.5 mm2 , PVC-HT insulation, resistant up to 90ºC and terminal block of 2p+E with maximum allowed cross section of 2.5 mm².
INGRESS PROTECTION : IP66 gear compartment. This luminaire has a high degree of hermeticity, IP66 (protection against dust and 0,3 bar to 3m pressure water jets penetration).
OPERATING TEMPERATURE : (Ta) – 20 degrees to +45 degree.
WEIGHT : 4 Kg total including control gear.

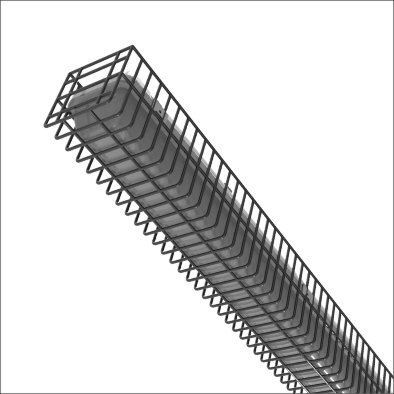

ACCESSORIES : Wire Guard.

Control protocols:
switchDIM
corridorFUNCTION
ready2mains
DSI/DALI
