Inani

The Inani luminaire is a cost-effective high performance Vapour proof type luminaire. Locally manufactured with removable & serviceable gear tray.

Suspended, Surface or P2000 mounted

580mm | 4000K | 24W | 3976 lm
870mm | 4000K | 34W | 5963 lm
1150mm | 4000K | 47W | 7883 lm
1500mm | 4000K | 58W | 10282 lm
1700mm |4000K | 64W | 11757 lm
2250mm | 4000K | 84W| 13819 lm
2800mm | 4000K | 110W | 18590 lm

Available with built in motion sensor

Locally designed and manufactured

IP44

SPEC SHEET

REVIT MODEL

SPECIFICATIONS

MODEL NUMBER :
INANI

HOUSING : PMMA.
LIGHT SOURCE : The fitting is designed to operate a LED up to 110W.
MOUNTING : Surface mounted, suspended or mounted onto P2000 trunking.
LUMEN MAINTENANCE : L80B10. Lifespan : > 70 000hrs.
CCT : 4000K or 3000K .
CRI : 80.
SYSTEM EFFICACY: 110 lm/W.
DIMENSIONS : 61mm x 70mm x length.
INGRESS PROTECTION : IP44.
OPERATING TEMPERATURE : (Ta) ≤ 40° C.
FEATURES :
Integrated microwave sensor on request.
Various power connections options available - top end, top centre, side or end cap. (This needs to be specified when ordering).

COLOURS

LIGHT SOURCE

HIGH VOLTAGE LED - HV ZHAGA BOARD | CRI80 | 4000 Kelvin

LOW VOLTAGE LED - ZHAGA BOARD | CRI80 | 4000 Kelvin

* The product is offered with either Low Voltage (LV) or High Voltage (HV) Zhaga boards depending on length and driver availability.
- 3000 Kelvin available on request, 7% less lumen output.
- Due to the continual advancement in LED technology the type of LED is subject to change.

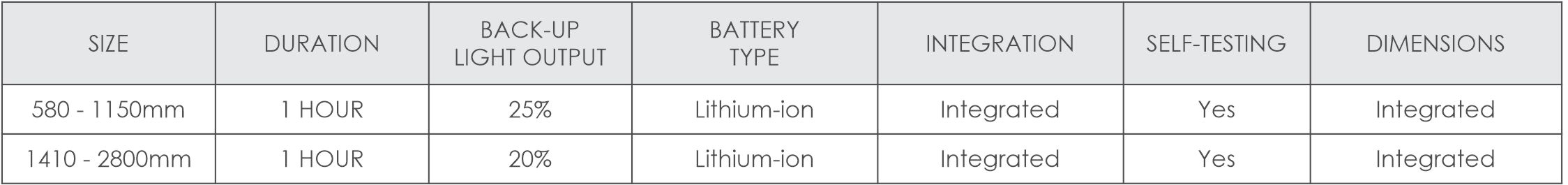

EMERGENCY LIGHTING (OPTIONAL)

LIGHT DISTRIBUTION

APPLICATION AREAS

Indoor or outdoor application.
Basement parking.
Garages.
Workshops.
Warehouses.
Tunnels.

Inani - application

TECHNICAL

INSTALLATION INSTRUCTIONS

Installation Instructions available on request

MOUNTING OPTIONS

DIMENSIONS MM

CONNECTIONS

ACCESSORIES

Available on request

Integrated microwave sensor:
Integrated non-visible motion detection
Automatic on/off switching of electronic control gear
Built in photocell for bright-out function
Delay time, detection range and bright-out function can be set via dip switches
Selectable time delays – 5s – 30m
Max. installation height 5 m
Variable detection area (100 – 10 %)
Zero cross switching
5-year guarantee

Control protocols:
switchDIM
corridorFUNCTION
ready2mains
DSI/DALI
