MITO
The Mito is a round luminaire available in 4 sizes. Supplied with remote driver and fitted with an acrylic diffuser to reduce glare, for even light distribution. With multiple wattages and sizes on offer this range meets the needs for countless new lighting applications.
Ceiling mounted recessed
11.1W | 10.5W | 14.7W | 21.9W | 28W
Dimensions 105mm Ø, 145mm Ø, 186mm Ø or 220mm Ø
Cut out 95mm Ø, 135mm Ø, 170mm Ø or 205mm Ø
DALI dimmable on request
MODEL NUMBER :
MITO 95mm
MITO 135mm
MITO 170mm
MITO 205mm
HOUSING : Aluminium frame.
DIFFUSER : Polycarbonate diffuser.
LIGHT SOURCE : The fitting is designed to operate a range of LED’s up to 28W.
FINISH : Powder coated.
MOUNTING : Ceiling mounted recessed.
LUMEN MAINTENANCE : L70>50,000 hrs at Ta = 25° Celsius
CCT : 4000K or 3000K.
CRI : >80.

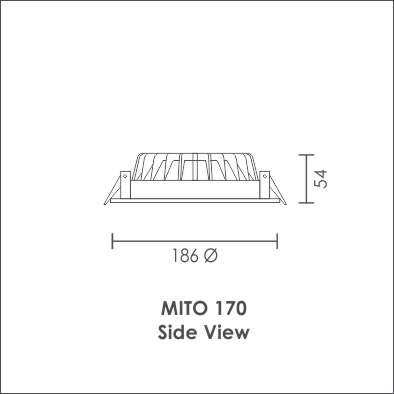

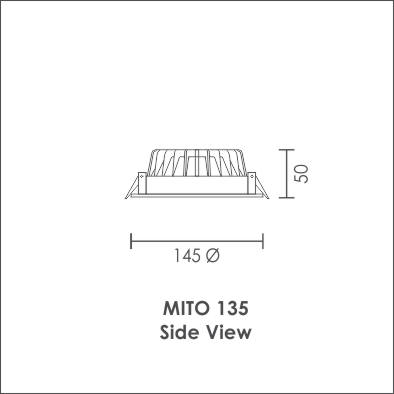

DIMENSIONS :
Mito 95 - 105mm Ø x 42mm.
Mito 135 - 145mm Ø x 50mm.
Mito 170 - 186mm Ø x 54mm.
Mito 205 - 220mm Ø x 58mm.

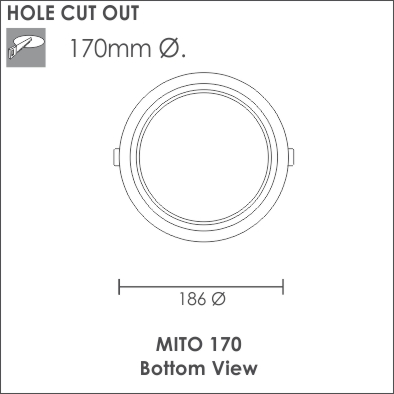

CUT OUT :
Mito 95 - 95mm Ø .
Mito 135 - 135mm Ø .
Mito 170 - 170mm Ø.
Mito 205 - 205mm Ø.
APPLICATION : Suitable for indoor use only.
Operating Temperature (Ta) - 20° C to +30 ° C.
INPUT VOLTAGE : 100 ~ 240V AC.
INPUT FREQUENCY : 50/60 Hertz.
FEATURES : Dimmable and DALI dimmable on request.
Indoor application.
Hotels.
Offices
Retail Areas
Entrance halls
Public access and circulation areas
Service areas
