Uno

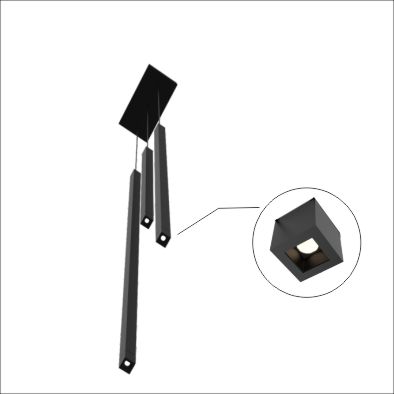

The UNO Pendant is a striking example of modern lighting design, seamlessly blending form and function to enhance interior spaces. Its minimalist aesthetic and precise dimensions make it a versatile choice for various architectural settings. Numerous design options are available - choice of number of light elements, tube lengths and hanging lengths.

Ceiling mounted.

1.25W | 4000K | 197 lm
1.4W | 4000K | 270 lm
2W | 4000K | 363 lm
3.2W | 4000K | 515 lm

Extrusion Dimensions 50mm x 50mm

SPEC SHEET

SPECIFICATIONS

MODEL NUMBER :
UNO

HOUSING : Extruded aluminium.
LIGHT SOURCE : The individual LED operates up to 3.2W.

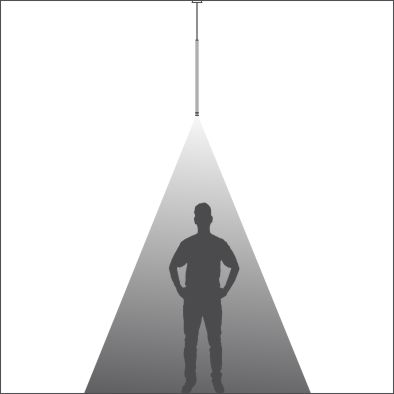

BEAM ANGLE : 20° or 44° anti-glare optical reflector.
MOUNTING : Ceiling mounted.
LUMEN MAINTENANCE : 90000h (L90B10) @ 65° C.
CCT : 4000K or 3000K.
CRI : 80.

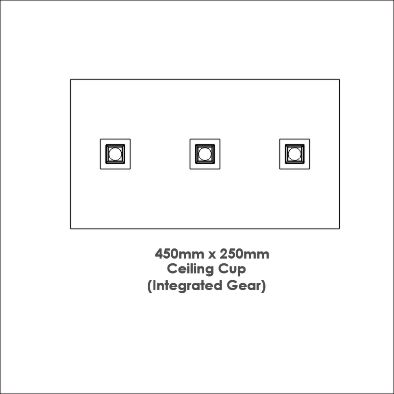

CONTROL GEAR : The electronic power supply is suitable for operation with a 220 - 240 volts. 50 hertz single phase. Remote gear. Allowances must be made for this in the ceiling or ceiling cup.
APPLICATION : Suitable for indoor use only.
OPERATING TEMPERATURE : (Ta) - 20° C to +25 ° C.

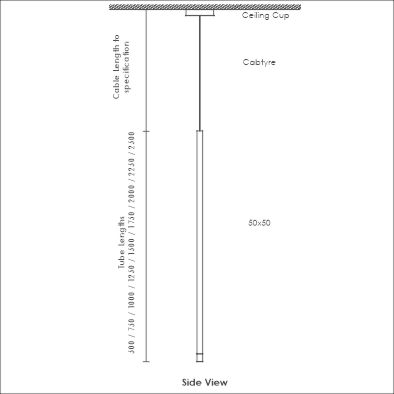

The Uno light element is available as an individual element or in collections of 3, 6, 9, 12, 15, 18 or 22 elements. Tube lengths available are : 500mm / 750mm / 1000 mm / 1250mm / 1500mm / 1750mm / 2000mm / 2250mm or 2500mm.
