Pandora Hex

The Pandora Hex is a striking architectural pendant luminaire with direct illumination to create a sophisticated lighting design. This range is suitable for a multitude of environments forming an impressive display with its simple elegance and adaptability.

Surface mounted or suspended.

600mm | 4000K | 42W | 8450 lm
900mm | 4000K | 70W | 9161 lm
1200mm | 4000K | 92W | 16782 lm
1700mm | 4000K | 139W | 25232 lm

Extrusion Dimensions available 50mm x 70mm

SPEC SHEET

REVIT MODEL

SPECIFICATIONS

MODEL NUMBER :
PANDORA HEX 600
PANDORA HEX 900
PANDORA HEX 1200
PANDORA HEX 1700

HOUSING : Extruded aluminium.
LIGHT SOURCE : The fitting is designed to operate LED up to 139W.
DIFFUSER : PMMA Matt Opal Profile + Hi Mt. LT87 high transmission diffuser or LT67 transmission diffuser.
FINISH : Powder coated.
MOUNTING : Surface mounted or suspended. Stainless steel wire. Mounting details to specifications - soffit, tiled or plastered ceiling.
ACCESSORIES : Decorative ceiling cup.
Ceiling cup 75 with suspension cable only
Ceiling cup 100 with 3 suspension cables.
Ceiling cup 300 with 3 suspension cables.
Ceiling cup 400 with 3 suspension cables (This size allows for remote gear in ceiling cup).
CONTROL GEAR : The electronic power supply is suitable for operation with a 220 - 240 volts. 50 hertz single phase.
APPLICATION : Suitable for indoor use only.
Operating Temperature (Ta) - 20° C to +25 ° C.
FEATURES : Various size options to create lighting effects.
Pandora Hex - Profile size 50mm x 70mm

N.B. Ceiling details must be specified when ordering to ensure that correct mounting can be supplied.
Not suitable for installation in open windy areas.

COLOURS

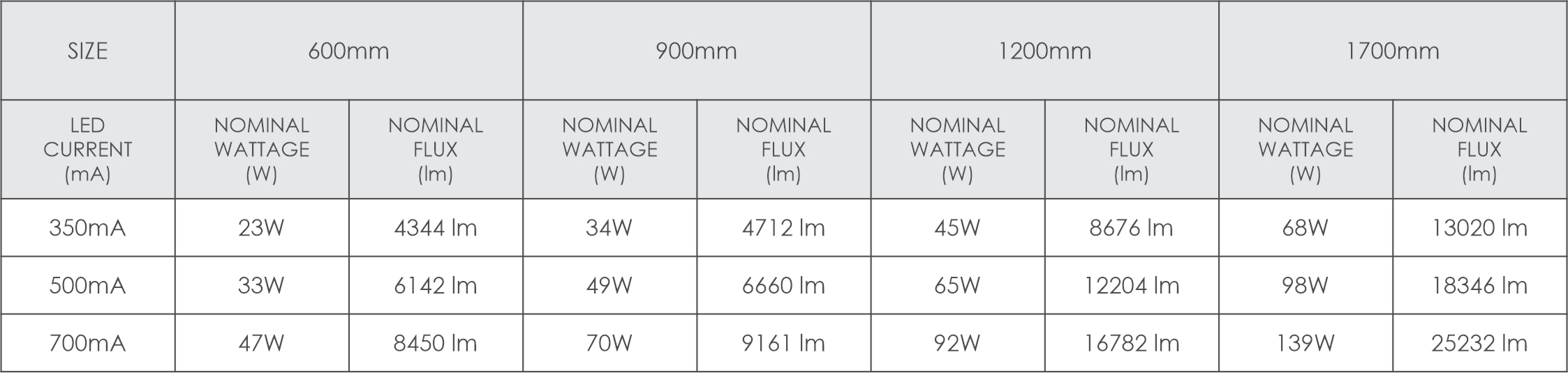

LIGHT SOURCE

LED - ZHAGA BOARD | CRI80

The environmental conditions of the installation will impact the efficiency of the LED’s.
Due to the continual advancement in LED technology the type of LED is subject to
change.

APPLICATION AREAS
