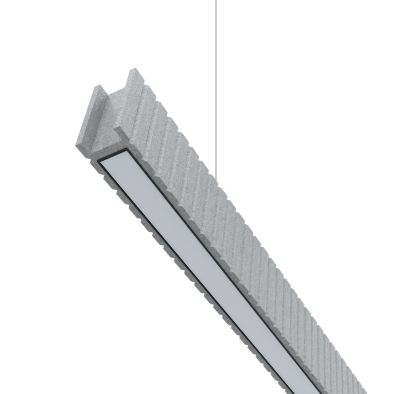

ACOUSTIC LINEAR
Slender lines of light set in an architectural environment, with its simple elegance and adaptability
Ceiling mounted.
Suspended.
Various cladding size options available.
MODEL NUMBER :
ACOUSTIC LINEAR 70
ACOUSTIC LINEAR 140
ACOUSTIC LINEAR 200
HOUSING : Extruded aluminium .
LIGHT SOURCE : The fitting is designed to operate a LED up to 64W.
DIFFUSER : PMMA Matt LT87.
FINISH : Powder coated and cladded with acoustic material.
MOUNTING : Ceiling mounted suspended.
LUMEN MAINTENANCE : 50000h (L90B10).
CCT : 4000K or 3000K .
CRI : 80.
SUSPENSION ACCESSORIES : Stainless steel wire or 12mm Rod complete with decorative ceiling cups. The adjustable wire suspension allows for horizontal and vertical adjustment.
CONTROL GEAR : The electronic power supply is suitable for operation with a 220 - 240 volts. 50 hertz single phase. Dimmable options available.
APPLICATION : Suitable for indoor use only.
OPERATING TEMPERATURE : (Ta) - 20° C to +25 ° C.
FEATURES : Removable gear tray assembly for easy installation and maintenance.
Various cladding size options available.
LED
Due to the continual advancement in LED technology the type of LED is subject to change.
- Indoor application.
- Architectural lighting.
- Commercial lighting.
- Office lighting.
- Shopping mall lighting.
- Corridor lighting.
| CODE | CEILING |
SUSPENSION |
DESCRIPTION |
| CCUP48T12PBC | SOFFIT | 12mm ROD | CEILING CUP 75x48 - 12mm Suspended Rod |
| CCUP48T12PFP | CONCRETE | 12mm ROD | CEILING CUP 75x48 - 12mm Suspended Rod |
| CCUP48SPBC | SOFFIT | CABLE | CEILING CUP 75x48 - Power Cable Clamp - Suspension cable & Power |
| CCUP48SPCBC | SOFFIT | 3 CORE CLEAR | CEILING CUP 75x48 - Power Cable Clamp - 3 Core clear cable |
| CCUP48SFFP | CONCRETE | CABLE | CEILING CUP 75x48 - Power Cable Clamp - Suspension cable & Power |
| CCUP48SPCFP | CONCRETE | 3 CORE CLEAR | CEILING CUP 75x48 - Power Cable Clamp - 3 Core clear cable |
| CODE | CEILING |
SUSPENSION |
DESCRIPTION |
| CCUP26PCBC | SOFFIT | CABLE | CEILING CUP 75x26 - Suspension & Power Cable |
| CCUPSSSPBC | SOFFIT | CABLE | CEILING CUP STAINLESS STEEL - Suspension & Power Cable |
| CODE | CEILING |
SUSPENSION |
DESCRIPTION |
| CCUP48SBC | SOFFIT | CABLE | CEILING CUP 75x48 - Suspension Cable Only |
| CCUP48SFP | CONCRETE | CABLE | CEILING CUP 75x48 - Suspension Cable Only |
| CCUP26SBC | SOFFIT | CABLE | CEILING CUP 75x26 - Suspension Cable Only |
| CCUP26SFP | CONCRETE | CABLE | CEILING CUP 75x26 - Suspension Cable Only |
| CCUPSSSBC | SOFFIT | CABLE | CEILING CUP STAINLESS STEEL - Suspension |
| CCUPSSSFP | CONCRETE | CABLE | CEILING CUP STAINLESS STEEL - Suspension |
