Acoustic Dega

A Darklight linear solution for premium class office lighting. Slender lines of light set in an architectural environment, with its simple elegance and adaptability

Ceiling mounted.

Suspended.

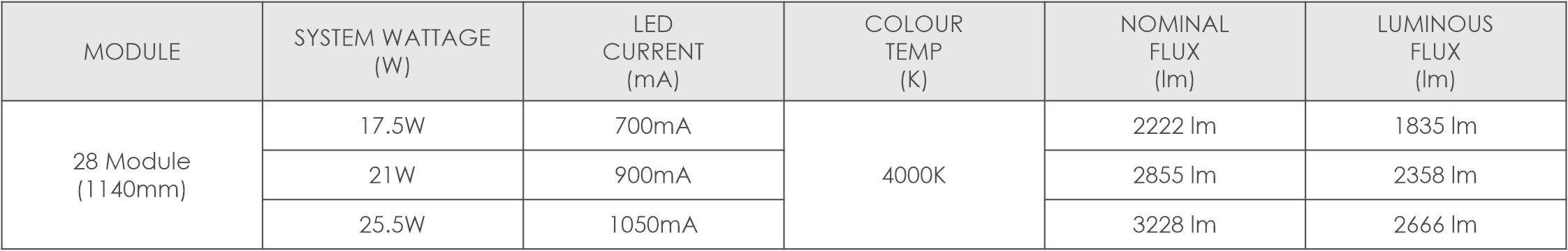

28 Module |17.5W |21W | 25.5W

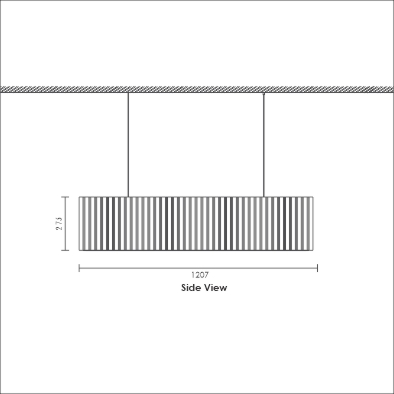

Extrusion Dimensions 50mm x 70mm

Fitting supplied with internal power supply

LOW GLARE

SPEC SHEET

SPECIFICATIONS

MODEL NUMBER :
ACOUSTIC DEGA

HOUSING : Extruded aluminium.
LIGHT SOURCE : The fitting is designed to operate a 25.5W LED .
BEAM ANGLE : 80° anti-glare optical reflector.
MOUNTING : Ceiling mounted suspended.
SUSPENSION ACCESSORIES : Stainless steel wire or 12mm Rod complete with decorative ceiling cups. The adjustable wire suspension allows for horizontal and vertical adjustment.
CONTROL GEAR : The electronic power supply is suitable for operation with a 220 - 240 volts. 50 hertz single phase.
APPLICATION : Suitable for indoor use only.
OPERATING TEMPERATURE : (Ta) - 20° C to +25 ° C.

COLOURS

admiral

apple

avo

black

blue curacao

blue green

coal

dark blue

dark camel

forest

harbour

light grey

marble

orange

pageant blue

powder

puree

silver

space

storm

LIGHT SOURCE

LED SAMSUNG LM281B+ DOWN-LIGHT

Due to the continual advancement in LED technology the type of LED is subject to change.

LIGHT DISTRIBUTION

APPLICATION AREAS

Indoor application.
Architectural lighting.
Commercial lighting.
Office lighting.
Shopping mall lighting.
Corridor lighting.

TECHNICAL

SUSPENSION ACCESSORIES

ELECTRICAL CONNECTION IN THE CEILING CUP

CODE	CEILING	SUSPENSION	DESCRIPTION
CCUP48T12PBC	SOFFIT	12mm ROD	CEILING CUP 75x48 - 12mm Suspended Rod
CCUP48T12PFP	CONCRETE	12mm ROD	CEILING CUP 75x48 - 12mm Suspended Rod
CCUP48SPBC	SOFFIT	CABLE	CEILING CUP 75x48 - Power Cable Clamp - Suspension cable & Power
CCUP48SPCBC	SOFFIT	3 CORE CLEAR	CEILING CUP 75x48 - Power Cable Clamp - 3 Core clear cable
CCUP48SFFP	CONCRETE	CABLE	CEILING CUP 75x48 - Power Cable Clamp - Suspension cable & Power
CCUP48SPCFP	CONCRETE	3 CORE CLEAR	CEILING CUP 75x48 - Power Cable Clamp - 3 Core clear cable

ELECTRICAL CONNECTION IN THE CEILING

CODE	CEILING	SUSPENSION	DESCRIPTION
CCUP26PCBC	SOFFIT	CABLE	CEILING CUP 75x26 - Suspension & Power Cable
CCUPSSSPBC	SOFFIT	CABLE	CEILING CUP STAINLESS STEEL - Suspension & Power Cable

SUSPENSION ONLY

CODE	CEILING	SUSPENSION	DESCRIPTION
CCUP48SBC	SOFFIT	CABLE	CEILING CUP 75x48 - Suspension Cable Only
CCUP48SFP	CONCRETE	CABLE	CEILING CUP 75x48 - Suspension Cable Only
CCUP26SBC	SOFFIT	CABLE	CEILING CUP 75x26 - Suspension Cable Only
CCUP26SFP	CONCRETE	CABLE	CEILING CUP 75x26 - Suspension Cable Only
CCUPSSSBC	SOFFIT	CABLE	CEILING CUP STAINLESS STEEL - Suspension
CCUPSSSFP	CONCRETE	CABLE	CEILING CUP STAINLESS STEEL - Suspension

ACCREDITATION

Class 1 Class 3 Aluminium IP20 Interior Use 5 year construction guarantee LED Manufactured in South Africa
