MODEL NUMBER :
TAURIS SLIM 1
TAURIS SLIM 2
TAURIS SLIM 3
TAURIS SLIM 4
TAURIS SLIM 5

HOUSING : LM 6 die cast aluminium and extruded aluminium.
LIGHT SOURCE : The fitting is designed to operate a range of LED’s up to 500W.

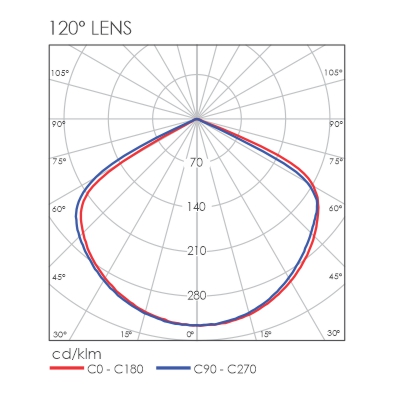

LENSES : Modular optical lenses are used. Material PMMA. Various lens options available for different applications, allowing for custom solutions.
LUMEN MAINTENANCE : L95B10 100000hrs @ 25º Ta.
FINISH : Powder coated.
MOUNTING : Adjustable trunion arm. Mild steel hot dipped galvanised. The luminiare is designed to be adjusted and locked into position at 15° intervals.
ACCESSORIES : Glare baffles. Mounting bracket for pole.
CONTROL GEAR : The electronic power supply is suitable for operation with a 220 - 240 volts. 50 hertz single phase.
Incorporating an electronic trip connector protector with surge protection 6 KV. Additional removable inline surge arrester 10 KV.
FASTENERS : All external screws are stainless steel.
GASKET : Gaskets are manufactured from post cured silicone rubber material.
INGRESS PROTECTION : IP 66.
SABS COMPLIANCE : SANS 60598-2-5: 2016
OPERATING TEMPERATURE : (Ta) ≤ 35° C.
Tauris Slim 1 - 3 Kg total including control gear.
Windage : Max. projected areas for mounting 0.0368m²
Tauris Slim 2 - 4 Kg total including control gear.
Windage : Max. projected areas for mounting 0.0768m²
Tauris Slim 3 - 6 Kg
Windage : Max. projected areas for mounting 0.1152m²
Tauris Slim 4 - 9 Kg
Windage : Max. projected areas for mounting 0.1568m²

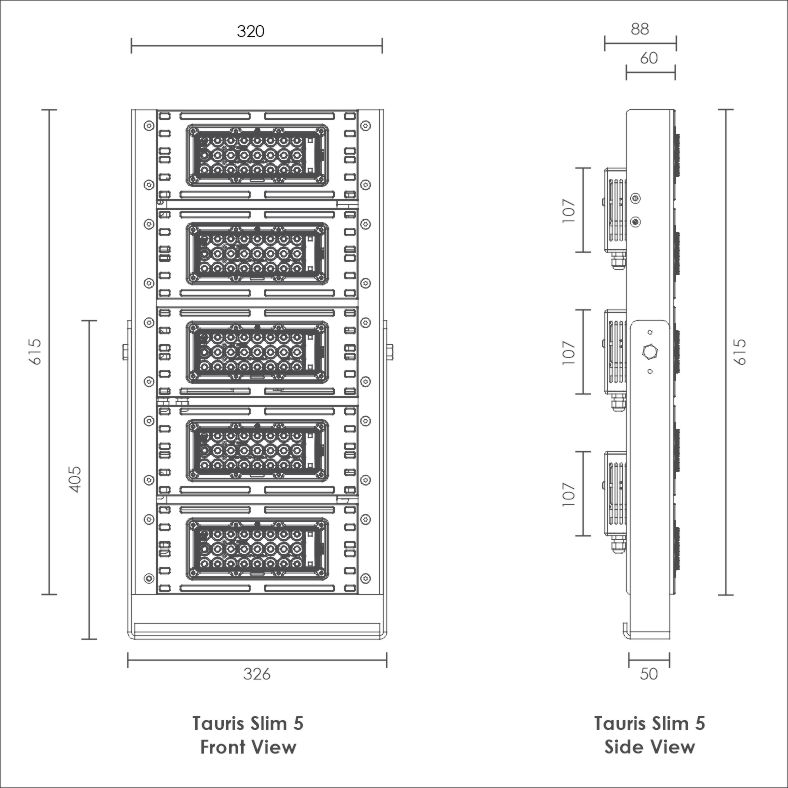

Tauris Slim 5 - 12 Kg
Windage : Max. projected areas for mounting 0.2150m²
