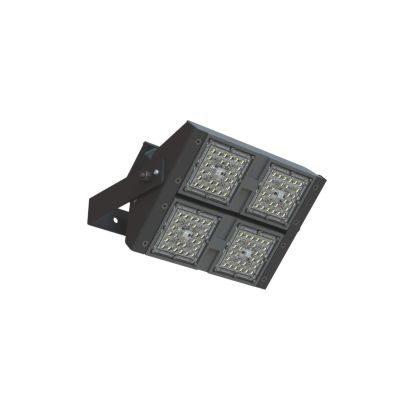

Tauris Pro

DISCONTINUED

The Tauris Pro brings security and safety with quality illumination to a variety of outdoor areas. With great performance and durability, these fixtures offer versatility while meeting your outdoor lighting requirements.

Ideal solution for area lighting.

Trunion mounted.

Various module options available.

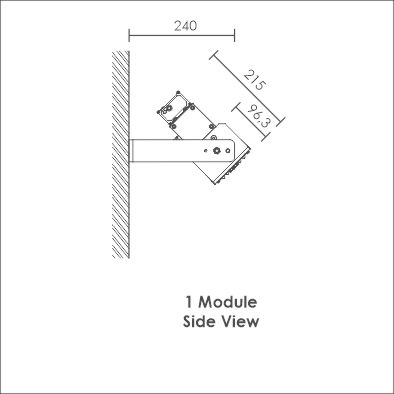

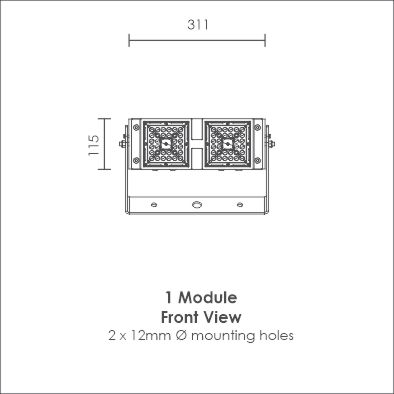

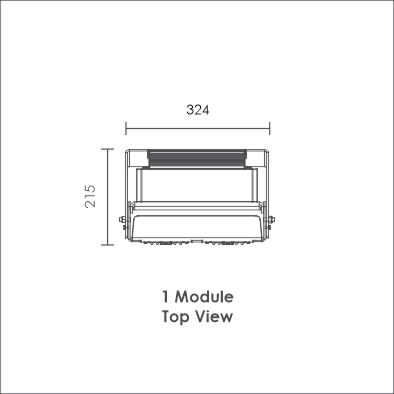

Tauris Pro 1 | 4000K | 135W | 19377 lm

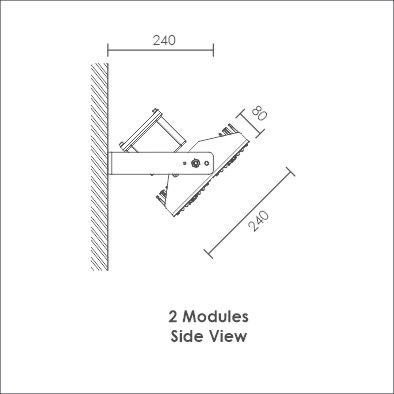

Tauris Pro 2 | 4000K | 256 W | 40120 lm

SPEC SHEET

INSTALLATION

SPECIFICATIONS

MODEL NUMBER :
TAURIS PRO 1
TAURIS PRO 2

HOUSING : LM 6 die cast aluminium and extruded aluminium.
LIGHT SOURCE : The fitting is designed to operate a range of LED’s up to 256W.
LENSES : Modular optical lenses are used. Material PMMA. Various lens options available for different applications, allowing for custom solutions.
FINISH : Powder coated.
MOUNTING : Adjustable trunion arm. Mild steel hot dipped galvanised. The luminiare is designed to be adjusted and locked into position at 15° intervals.

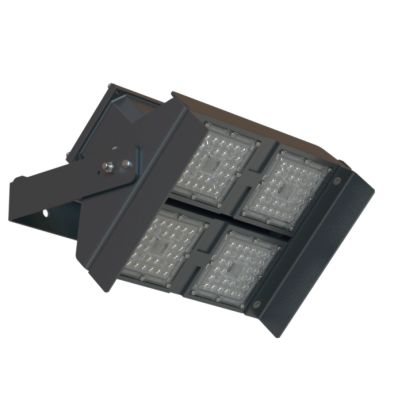

ACCESSORIES : Glare baffles. Mounting bracket for pole.
CONTROL GEAR : The electronic power supply is suitable for operation with a 220 - 240 volts. 50 hertz single phase.
Incorporating an electronic trip connector protector with surge protection 6 KV. Additional removable inline surge arrester 10 KV.
FASTENERS : All external screws are stainless steel.
GASKET : Gaskets are manufactured from post cured silicone rubber material.
INGRESS PROTECTION : IP 66.
MECHANICS : Operating Temperature (Ta) ≤ 35° C.
Operating Temperature (Ta) ≤ 35° C.
Tauris Pro 1 - 6.4Kg total including control gear.
Windage : Max. projected areas for mounting 0.0357m²
Tauris Pro 2 - 9.5Kg total including control gear.
Windage : Max. projected areas for mounting 0.0746m²

COLOURS

BLACK (B)

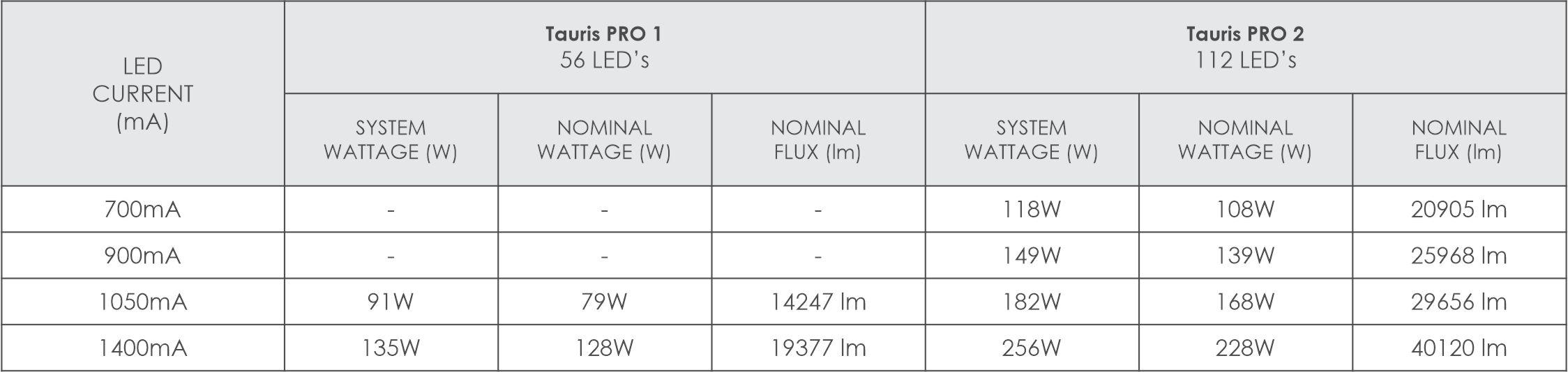

LIGHT SOURCE

LED Samsung LH351B

The Nominal flux of the LED is based on the LED manufacturer's data at 25°C.
At an ambient temperature of 30° C, the lumen maintenance is > 90% at 101 000 hours and > 80% at 102 000 hours.
The environmental conditions of the installation will impact the efficiency of the LED's.
Due to continual advancement in LED technology the type of LED is subject to change.

LIGHT DISTRIBUTION

Suggested LED lens options. Various lens options available for different applications, allowing for custom solutions.

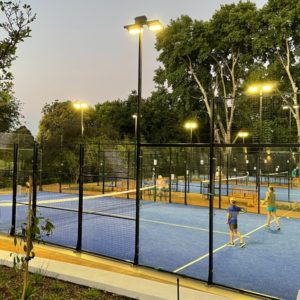

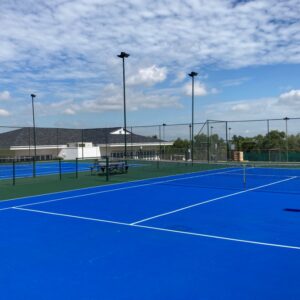

APPLICATION AREAS

Outdoor application.
Container yard lighting.
Sports field lighting.
Medium to high mast lighting.
Car park lighting.
Signage lighting.
General security lighting.
Building facade lighting.
