kuhle Maxi

KUHLE MAXI

The Kuhle Maxi is a modern designed luminaire with rectangular body which provides a stylish solution for area lighting. This luminaire is designed for applications such as signage, car parks and security lighting.

Ideal solution for high mast lighting

LM6 die cast aluminium.

Adjustable trunion arm.

IP66.

SPECIFICATIONS

MODEL NUMBER :
KUHLE MAXI

HOUSING : LM 6 die cast and extruded aluminium.
LIGHT SOURCE : The fitting is designed to operate a range of LED’s up to 285W.
LUMEN MAINTENANCE : L95B10 100000hrs @ 25º Ta.
DIFFUSER : Toughened glass or high impact acrylic.
FINISH : Powder coated.
MOUNTING : Trunion arm - Mild steel hot dipped galvanised.
ACCESSORIES : Wire Guard.
CONTROL GEAR : The Driver and LED module are housed in separate compartments for optimal thermal management. The electronic power supply is designed to operate with a 220-240V AC, 50Hz single phase. The LED driver includes built-in surge protection up to 4kV. Additionally, there is a removable inline surge arrester rated at 10kA/10kV.
FASTENERS : All external screws are stainless steel. Cable glands are SABS approved to insulate IP67 ingress protection.
GASKET : Gaskets are manufactured from post cured silicone rubber material.
INGRESS PROTECTION : IP 66.
OPERATING TEMPERATURE : (Ta) ≤ 35° C.
WEIGHT : 4.2Kg.
WINDAGE : Max. Projected areas for mounting - 0.129m²

COLOURS

BLACK (B)

NATURAL ALUMINIUM (N)

LIGHT SOURCE

LED OSRAM

kuhle Maxi – light source

* Fitting must be powder coated.
The Nominal flux of the LED is based on the LED manufacturer's data at 25°C.
System Flux based on RLS014T4B lens
The environmental conditions of the installation will impact the efficiency of the LED's.
Due to continual advancement in LED technology the type of LED is subject to change.

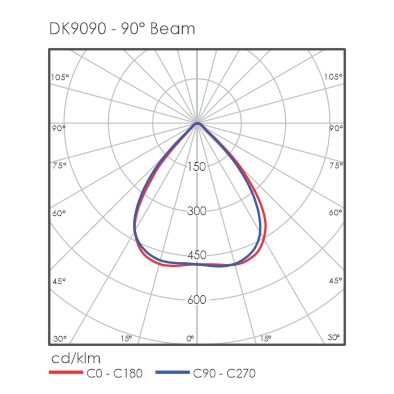

LIGHT DISTRIBUTION

133W - 200W

285W

APPLICATION AREAS

Outdoor application.
Container yard lighting.
Sports lighting.
High mast lighting.
Car park lighting.
Signage lighting.
General security lighting.
Building facade lighting.

kuhle Maxi - applications

TECHNICAL

INSTALLATION INSTRUCTIONS

Installation Instructions available on request

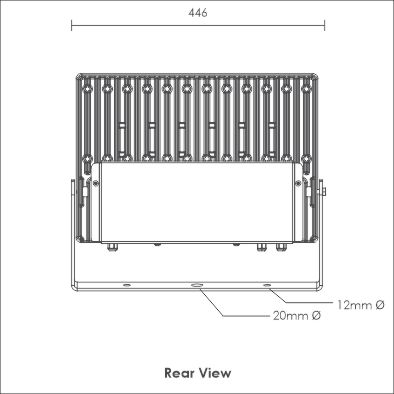

DIMENSIONS MM

133W - 200W

285W

MOUNTING OPTIONS

ACCESSORIES - WIRE GUARD

ACCREDITATION

industrial IP66 SABS approved
