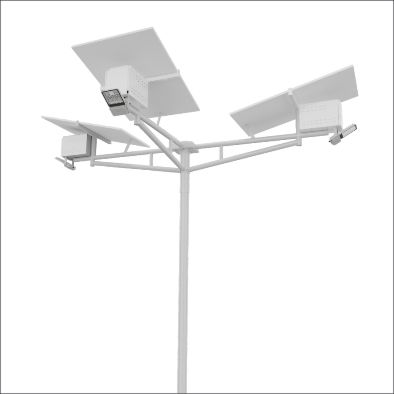

KHANYA ISTRIA HIGH MAST
The KHANYA Istria High Mast solution for outdoor areas and rural applications provides a high performing, robust option.
Ideal solution for Off Grid areas
LM6 die cast aluminium.
IP66.
MODEL NUMBER :
KHANYA ISTRIA HIGH MAST
LUMINAIRE : Istria - LM 6 die cast and extruded aluminium. 10 year construction guarantee.
INGRESS PROTECTION : IP 66.
For detailed luminaire specifications refer to Istria catalogue.
LIGHT SOURCE : The fitting is designed to operate a range of LED’s up to 100W.
LUMEN MAINTENANCE : At an ambient temperature of 30° C, the lumen maintenance is > 90% at 48 000 hours and > 80% at 100 000 hours.
HOUSING : All components are manufactured from powder coated stainless steel for coastal regions and powder coated galvanised mild steel for inland use.
MOUNTING : Pole Mounted, plinth mounted or buried.
SOLAR PANEL : Polycrystalline solar panel, CINCO modules. Rated output 380W.
BATTERY : The rechargeable batteries are of different composite systems. The batteries are completely sealed and is, therefore, maintenance-free,leak proof and usable in any position.
MODULE BRACKETS : Tilt adjustable bracketing system for accurate sun path adjustment.
FEATURES : The system is designed to operate optimally for 12 hour night cycle and up to four nights operation without system charge (See Configurations Matrix).
All external cabling is UV stabilised with IP67 plug connectors, No tooling required for connecting.
Integrated “hot swop”electronic components.
Theft and vandal resistant.
Outdoor application.
Asymmetrical distribution.
Street Lighting
Area Lighting
Security Lighting
Parking Areas
Roads in off grid areas
Road works and traffic control
Lithium-ion batteries are distinctly different from their lead-acid equivalents. They also provide more advantages in terms of performance and efficiency. The first noticeably aspect of Lithium-ion systems is the compacted size of the batteries. This is because Lithium-ion has a higher energy density compared to its lead-acid counterparts making it smaller and lighter.
The Depth-Of-Discharge (DOD) of a Lithium-ion systems are also very high. These batteries are able to discharge close to 70% without damaging the battery. Lithium-ion systems also has a much longer cycle life compared to lead-acid Batteries.
Lithium-ion Batteries are incorporated with a Battery Management System (BMS) which constantly monitors the condition of the battery. This allows the battery to disconnect if it is over charged or discharged to a very low voltage. The BMS prevents the battery from excessive draining and over charging which prolongs the battery life.
This is a feature offers autonomous time based scheduling through the course of the night
PROFILES
There are predetermined profiles to choose from which best suit the application at hand
