MODEL NUMBER :
PLATO

HOUSING : LM 6 die cast aluminium and extruded aluminium.
LIGHT SOURCE : The fitting is designed to operate a 12W LED.
FINISH : Powder coated.

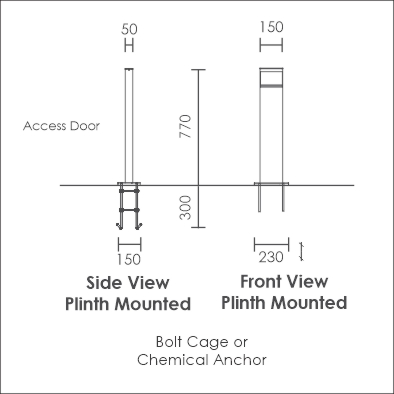

MOUNTING : Plinth mounted.
CONTROL GEAR : 220V - Direct to mains.
FASTENERS : All external screws are stainless steel.
GASKET : Silicone sponge gasket.
INGRESS PROTECTION : IP65.
MECHANICS : Operating Temperature (Ta) ≤ 35° C.
Weight : 5 Kg.
Windage : Max. projected areas for mounting 0.138m2 .

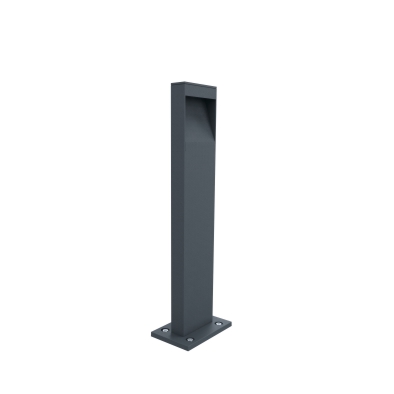

FEATURES : The bollard installs onto stubby and is secured with stainless steel screws. The stubby base plate can be surface mounted or buried. The buried version provides a flange-less or hidden mounting appearance. The circuit breaker is attached to the stubby.
Surge arrester to protect LED supply.
