MODEL NUMBER :
VICTORIA MINI

HOUSING : LM 6 die cast aluminium.

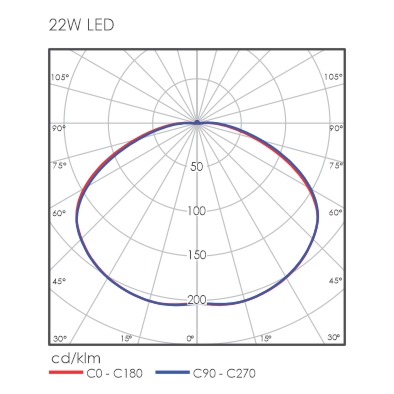

LIGHT SOURCE : The fitting is designed to operate a range of LED’s up to 22W.
DIFFUSER : Opal Polyethylene.
FINISH : Powder coated or paint technique.

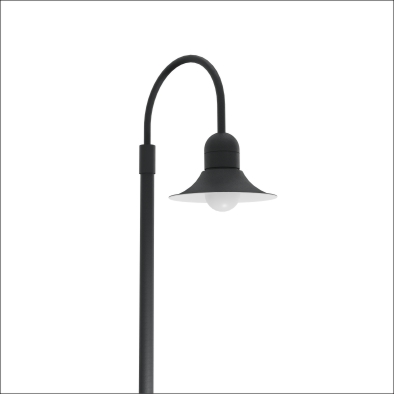

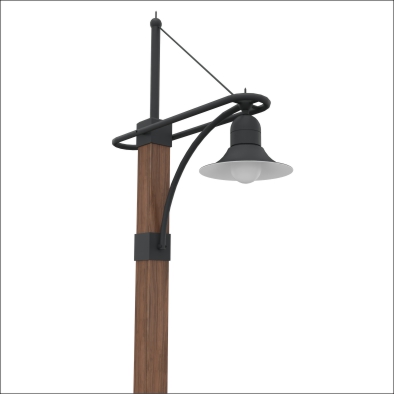

MOUNTING : Post or wall mounted.

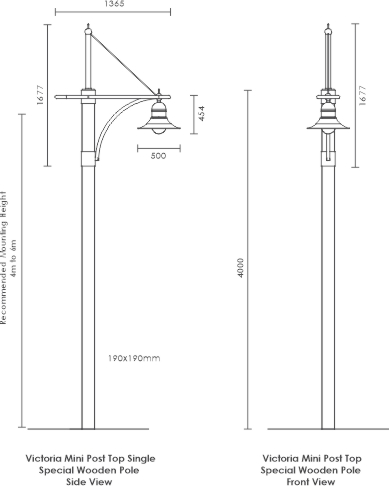

Top Entry. Recommended mounting height 4.5m to 6m. Spigot entry 38mm Ø.
For detailed mounting specifications refer to pole and accessories section.
CONTROL GEAR : The electronic power supply is suitable for operation with a 220 - 240 volts. 50 hertz single phase. Incorporates an electronic trip connector protector with surge protection 6 KV. Additional removable inline surge arrester 10 KV.
FASTENERS : All external screws are stainless steel. Cable glands are SABS approved to insulate IP67 ingress protection.
GASKET : Gaskets are manufactured from post cured silicone rubber material. Silicone gaskets perform in a wide temperature range -40° C to +200° C.
INGRESS PROTECTION : IP 65.
OPERATING TEMPERATURE : (Ta) ≤ 35° C.
