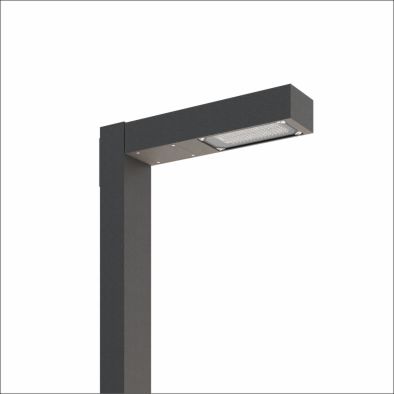

Europa Pro

This luminaire is specifically implemented in all lighting applications in street lighting, squares, parking areas and landscapes. Light distribution in this fitting is asymmetrical and is used to provide a predominantly functional purpose for Group B road lighting and parking areas.

Ideal solution for street lighting and parking areas

Street Lighting CLASS - A4 | B | C

Asymmetrical light distribution

Post mounted

Designed to operate LED up to 68W

Recommended mounting height 3.5m to 5m

IP65

SPEC SHEET

REVIT MODEL

INSTALLATION INSTRUCTION - BURIED

INSTALLATION INSTRUCTION - PLINTH

SPECIFICATIONS

MODEL NUMBER :
EUROPA PRO

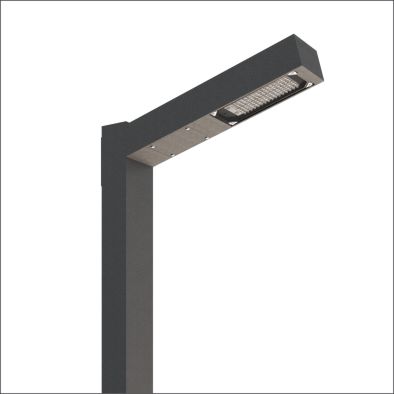

EUROPA PRO 15

HOUSING : Extruded aluminium.
LIGHT SOURCE : The fitting is designed to operate a range of LED’s up to 68W.
LUMEN MAINTENANCE : L90B10 > 110 000 @ 25º Ta.
DIFFUSER : Toughened glass or high impact acrylic offering added protection for optical lenses.
LENSES : Modular optical lenses. Material PMMA.
Various lens options available for different applications, allowing for custom solutions.
FINISH : Powder coated.

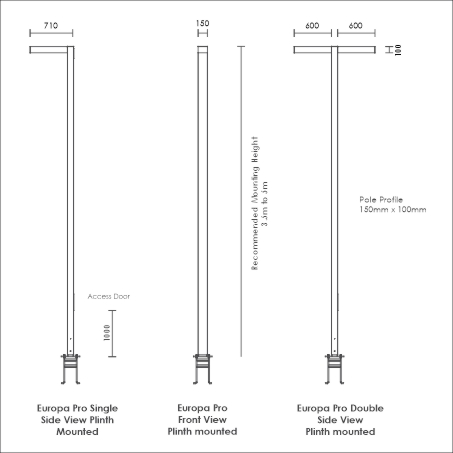

MOUNTING : Post mounted - vertical post.
Recommended mounting height 3.5m to 5m. Rectangular pole option 100 x 150mm pole.
CONTROL GEAR : The electronic power supply is suitable for operation with a 220 - 240 volts. 50 hertz single phase.
Incorporating an electronic trip connector protector with surge protection 6 KV. Additional removable inline surge arrester 10 KV.
FASTENERS : All external screws are stainless steel. Cable glands are SABS approved to insulate IP67 ingress protection.
GASKET : Gaskets are manufactured from post cured silicone rubber material. Silicone gaskets perform in a wide temperature range -40° C to +200° C.
INGRESS PROTECTION : IP 65.
OPERATING TEMPERATURE : (Ta) ≤ 35° C.
WEIGHT : Europa Pro Single - 6 Kg total including control gear.
Europa Pro 15 Single - 6.5 Kg total including control gear.
WINDAGE : Max. projected areas for mounting

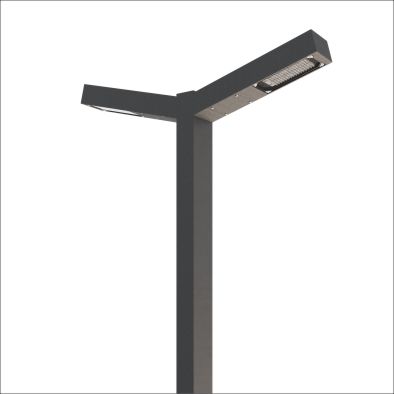

Europa Single Head - 0.06 m2 Europa Double Head - 0.12 m2
ADDITIONAL OPTIONAL FEATURES :
LIGHTING CONTROL : Bluetooth module
DAYLIGHT SWITCH: Photocell can be incorporated.
DIMMING: Optional stepDIM available on request.

COLOURS

BLACK (B)

WHITE (W)

MATT SILVER (M)

CHARCOAL GREY (C)

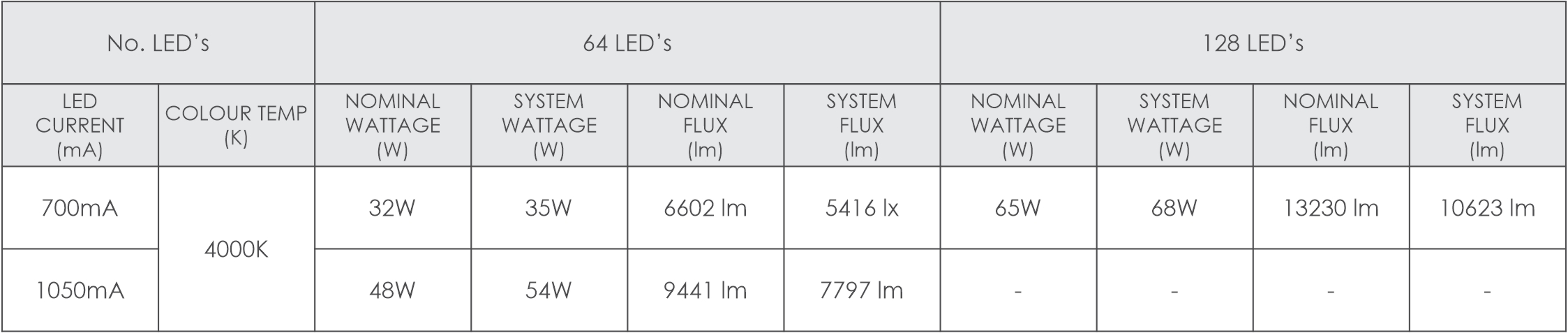

LIGHT SOURCE

LED

The Nominal flux of the LED is based on the LED manufacturer's data at 25°C.
The environmental conditions of the installation will impact the efficiency of the LED's.
Due to continual advancement in LED technology the type of LED is subject to change.

LIGHT DISTRIBUTION

Suggested LED lens options. Various lens options available for different applications, allowing for custom solutions.

APPLICATION AREAS

Indoor or outdoor application.
Asymmetrical distribution.
Group A4 | B & C class road lighting.
Parking areas.
Parks and gardens.
Residential areas.
Squares and plazas.

europa pro - applications

ADDITIONAL OPTIONAL FEATURES

NEMA PHOTOCELL SENSOR (OPTIONAL)
ON/OFF 3-PIN NEMA PHOTOCELL
Photocell with an integrated surge arrestor. The twist and lock feature of the photocell allows for an easy replacement of the surge arrestor.

stepDIM
This solution offers autonomous time based scheduling through the course of the night.
PROFILES
There are 4 predetermined profiles to choose from which best suit the application at hand

sensTECH
Selected sensors for fittings to offer multiple functions
ON/OFF
The most basic and cost effective
BASIC DIMMING
corridorFUNCTION& advanced stepDIM
ADVANCED DIMMING
corridorFUNCTION, advanced stepDIM + bluTECHSENTRY

bluTECH SENTRY
Most advanced exterior control offering. Scalable & customizable to perfectly suit any application
TIME SCHEDULING
Autonomous time based scheduling with override
MOTION CONTROL
Motion control can be over layed onto the dimming schedules
GROUP/SCENE CONTROL
Can recall scenes to set moods for venue functions
STAND-ALONE / BMS / IOT
Can be operate as a stand-alone system, integrate into a Building Management System & can connect to the cloud for data analytics
