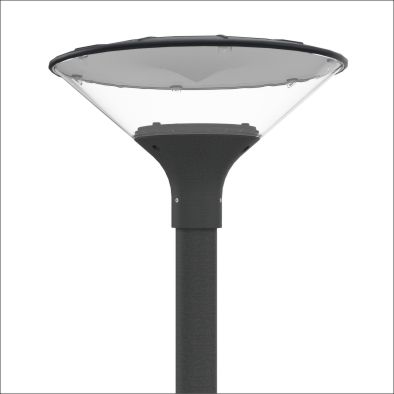

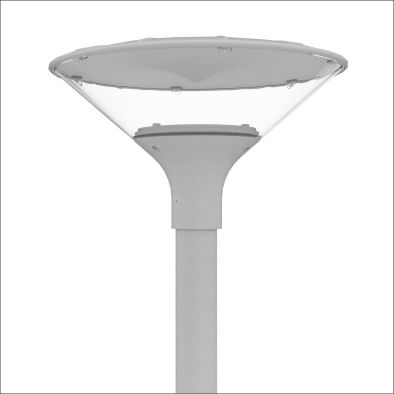

This luminaire is specifically implemented in all lighting applications in street, squares, parking areas and landscapes. Light distribution in this fitting is symmetrical or asymmetrical, and is used to provide a predominantly functional purpose in guiding or leading people and vehicles.
Ideal solution for street lighting and parking areas
Street Lighting CLASS - A4 | B | C
Symmetrical or asymmetrical light distribution
Designed to operate a range of LED’s up to 54W
Recommended mounting height 3.5m to 6m
MODEL NUMBER :
HOUSING : Spigot and Heat-sink - LM 6 die cast aluminium. Roof - Injected moulded Polypropylene. Hail resistant.
REFLECTOR : Injection moulded - Acrylonitrile butadiene styrene. Available as symmetrical or asymmetrical light distribution.
LIGHT SOURCE : The fitting is designed to operate a range of LED’s up to 54W. The LED is an Osram high powered LED mounted onto an aluminium circuit board, 19 or 27 LED option, NTC point. Push in connector for ease of maintenance.
Recommended LED 4000 Kelvin Natural white with CRI >70.
LED Lifetime Residual Flux @ Ta 25° C @ 60 000h - 90%.
DIFFUSER : UV stabilised clear acrylic.
FINISH : Powder coated.
MOUNTING : Post mounted.
Recommended mounting height 3.5m to 6m.
Spigot entry 76mm Ø at a depth of 40mm.
For detailed mounting specifications and pole selection, refer to pole and accessories section.
CONTROL GEAR : The electronic power supply is suitable for operation with a 220 - 240 volts. 50 hertz single phase.
Incorporating an electronic trip connector protector with surge protection 6 KV. Additional removable inline surge arrester 10 KV.
FASTENERS : All external screws are stainless steel.
GASKET : Gaskets are manufactured from post cured silicone rubber material. Silicone gaskets perform in a wide temperature range -40° C to +200° C.
INGRESS PROTECTION : IP 66.
MECHANICS : Operating Temperature (Ta) ≤ 35° C.
Weight : 5 Kg total including control gear.
Windage : Max. projected areas for mounting 0.09m2 .
ADDITIONAL OPTIONAL FEATURES :
- Thermal monitoring of the LED PC board.
- Dimming available.
- Special colours can be specified.
- Daylight switch.

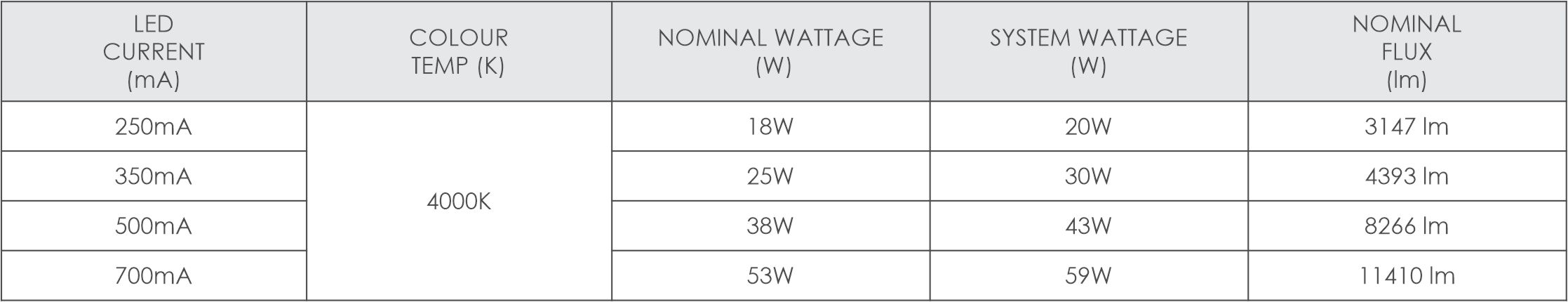

LED Osram Oslon Square Giant 4000 Kelvin
|19 LED's||27 LED's|
|LED CURRENT (mA)||SYSTEM WATTAGE (W)||NOMINAL WATTAGE (W)||NOMINAL FLUX (lm)||SYSTEM WATTAGE (W)||NOMINAL WATTAGE (W)||NOMINAL FLUX (lm)|
|700mA||43W||38W||6899 lm||59W||54W||9681 lm|
3000K available on request.
The nominal flux of the LED is based on the LED manufacturers data at 25° C.
The environmental conditions of the installation will impact the efficiency of the LED’s.
Due to the continual advancement in LED technology the type of LED is subject to change.
- Outdoor application.
- Symmetrical distribution.
- Parking areas.
- Parks and gardens.
- Residential areas.
- Squares and plazas.
Installation Instructions available on request
