MODEL NUMBER :
LUMINA PRO ROTO

HOUSING : LM 6 die cast aluminium.
The fitting is designed to operate a range of LED’s up to 176W. The LED is a Osram high powered LED mounted onto an aluminium circuit board.
Recommended LED 4000 Kelvin Natural white with CRI >70.
LUMEN MAINTENANCE : L95B10 100000hrs @ 25º Ta.
DIFFUSER : Toughened glass or high impact acrylic offering added protection for optical lenses.
LENSES : Modular optical lenses. Material PMMA. Various lens options available for different applications, allowing for custom solutions.
FINISH : Cast aluminium or powder coated.

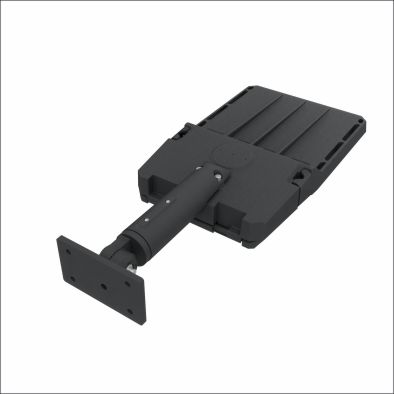

MOUNTING : Wall mounted. Luminaire designed to face downwards at a maximum rake of 15°.
Spigot entry 42mm Ø with a 125mm depth.
Recommended mounting height 3.5m to 9m.
CONTROL GEAR : The electronic power supply is suitable for operation with a 220 - 240 volts. 50 hertz single phase. Incorporating an electronic trip connector protector with surge protection 6 KV. Additional removable inline surge arrester 10 KV.
FASTENERS : All external screws are stainless steel. Cable glands are SABS approved to insulate IP67 ingress protection.
GASKET : Gaskets are manufactured from post cured silicone rubber material. Silicone gaskets perform in a wide temperature range -40° C to +200° C.
INGRESS PROTECTION : IP 66.
SABS COMPLIANCE : SANS 60598-2-3 / SANS 475:2013
OPERATING TEMPERATURE : (Ta) ≤ 35° C.
WEIGHT : 6.9 Kg total including control gear.
WINDAGE : Max. projected areas for mounting 0.02m².
