LINEAR MINI 50x70 IP

Slender lines of light set in an architectural environment are the essence of the Linear Mini, with its simple elegance and adaptability it accommodates most design applications.

Surface mounted.

24V | 4000K | 22W/m | 2950 lm/m

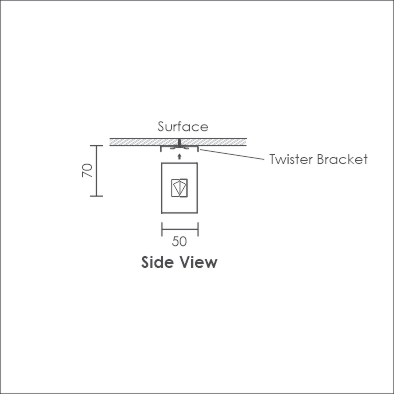

Extrusion Dimensions 50mm x 70mm

IP65

SPEC SHEET

SPECIFICATIONS

MODEL NUMBER :
LINEAR MINI 50x70 IP

HOUSING : Extruded aluminium .
LIGHT SOURCE : The fitting is designed to operate a LED up to 22W/m.
DIFFUSER : PMMA Matt Opal Profile + Hi Mt. LT67 transmission diffuser.
FINISH : Powder coated.

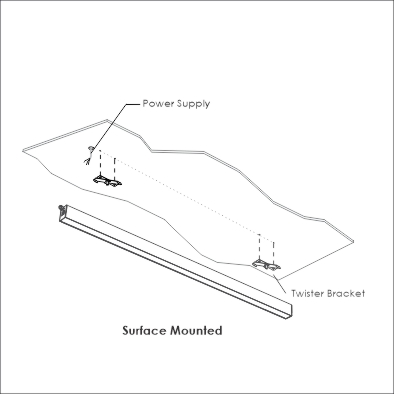

MOUNTING : Surface mounted.
Options available for soffit or concrete mounting.
CONTROL GEAR : The electronic power supply is suitable for operation with a 220 - 240 volts. 50 hertz single phase. Dimmable options available.
APPLICATION : Suitable for outdoor use.
OPERATING TEMPERATURE : (Ta) - 20° C to +25 ° C.
FEATURES : Available in various sizes and lengths to allow for customised designs.
Exterior Under canopy lighting.

0-3m product length: Integrated Constant Current driver
3-6m product length: Integrated Constant Voltage driver
3-9m product length: Remote IP67 Constant Voltage driver
3-9m product length: Remote Internal Constant Voltage driver **Recommended for inaccessible heights

COLOURS

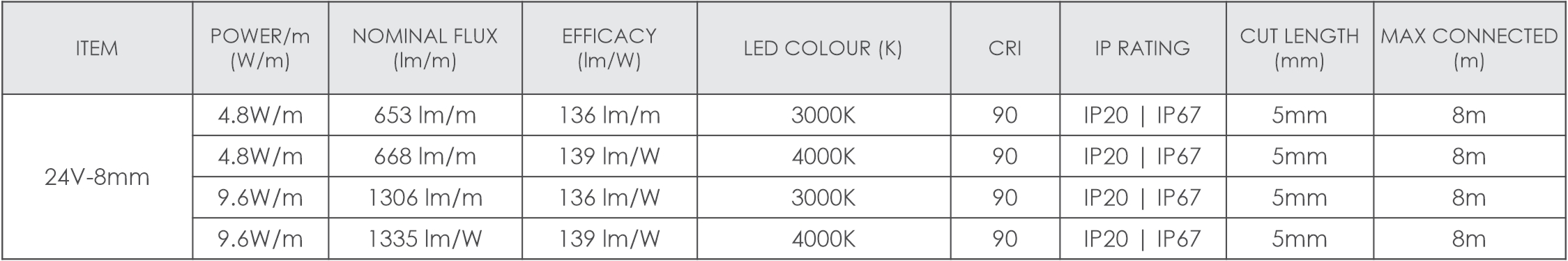

LIGHT SOURCE

LED BOARD 24V

LED TAPE 24V

The environmental conditions of the installation will impact the efficiency of the LED’s.
Due to the continual advancement in LED technology the type of LED is subject to change.

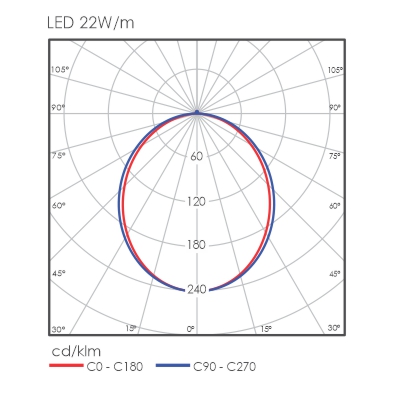

LIGHT DISTRIBUTION
