KEVO

A small accent light designed using a Gu10 LED lamp or LED COB. These luminaires are designed to illuminate plants, architectural details and sign boards.


Ideal solution for landscape lighting.

LM 6 die cast and extruded aluminium.

Adjustable trunion arm or spike mounted.

IP65.

SPECIFICATIONS

MODEL NUMBER :
KEVO

HOUSING : LM 6 die cast and extruded aluminium.
LIGHT SOURCE : The fitting is designed to operate a GU10 lamp or a 12W LED.
REFLECTOR : For LED Cob - Vacuum metalised medium reflector.
Beam angle 40°.
DIFFUSER : Tempered glass.
FINISH : Powder coated.
MOUNTING : Adjustable trunion arm.

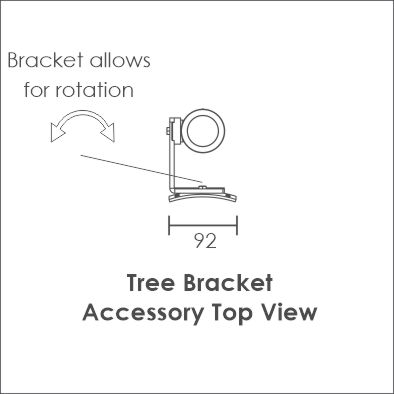

ACCESSORIES : Spike mounting.
POWER SUPPLY : Designed to operate a direct to mains 220 – 240 volts AC 50 Hertz single phase or the electronic supply is suitable for operation with 220 – 240 volts - 50 hertz single phase.
FASTENERS : All external screws are stainless steel.
GASKET : EPDM and insertion rubber.
INGRESS PROTECTION : IP65.
MECHANICS : Operating Temperature (Ta) ≤ 35° C.
Weight : 0.36 Kg.
Windage : Max. projected areas for mounting 0.081m².
NOTE : Maximum lamp length is 60mm high.

COLOURS
LIGHT SOURCE

LED COB 9mm

LED CURRENT (mA)SYSTEM WATTAGE (W)NOMINAL WATTAGE (W)COLOUR TEMP (K)NOMINAL FLUX (lm)
350mA13W12W4000K
3000K
1830 lm
1770 lm

LED

LAMPWATTAGEBASE
LEDWattage as per lamp
manufacturer for enclosed application (Maximum 60mm length)
GU10

LIGHT DISTRIBUTION

kevo light distributionSova Bollard light distribution

APPLICATION AREAS
  • Indoor or outdoor application.
  • Symmetrical distribution.
  • Landscape lighting.
  • Pathway lighting.
  • Wall washing.

Kevo light distribution

TECHNICAL

INSTALLATION INSTRUCTIONS

Installation Instructions available on request
CERTIFICATIONS

IP65  LED SABS approved
