CUBICA TRUNION

The Cubica is a modern designed luminaire with square body which provides a stylish solution for accent lighting. This luminaire is designed for applications such as signage, sculptures and  landscape lighting.


Ideal solution for accent lighting

24W LED  | 3000 - 4000K | 3705 lm - 3835 lm

LED Beam 20° or 31°

Adjustable trunion arm.

IP65.

SPECIFICATIONS

MODEL NUMBER :
CUBICA TRUNION

HOUSING : LM 6 die cast and extruded aluminium.
LIGHT SOURCE : The fitting is designed to operate a LED up to 25W.
DIFFUSER : Opti glass 4mm, which allows for 10% better heat and light distribution.
REFLECTOR : 93% efficiency. Precision-molded from high grade PC UL94 HB rated material with operating rating -40°C to +100°C.
FINISH : Powder coated.

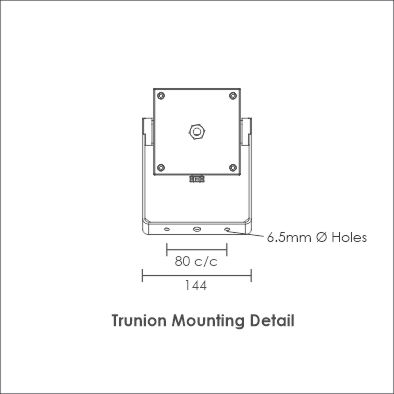

MOUNTING : Adjustable trunion arm. Mild steel hot dipped galvanised.

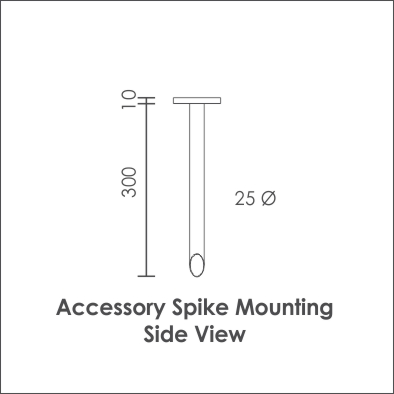

ACCESSORIES : Spike mounting.
CONTROL GEAR : The electronic supply is suitable for operation with 220 – 240 volts - 50 hertz single phase.
FASTENERS : All external screws are stainless steel.
GASKET : EPDM gasket.
INGRESS PROTECTION : IP65.
MECHANICS : Operating Temperature (Ta) ≤ 35° C.
Weight : 4 Kg.
Surge arrester to protect LED supply.

COLOURS
LIGHT SOURCE

LED COB 17mm

LED CURRENT (mA)BEAMSYSTEM WATTAGE
(W)
NOMINAL WATTAGE (W)COLOUR TEMP (K)NOMINAL FLUX (lm)
700mA20° or 31°27W25W4000K4105 lm
3000K3970 lm

LIGHT DISTRIBUTION

APPLICATION AREAS
  • Indoor or outdoor application.
  • Symmetrical distribution.
  • Landscape lighting.
  • Pathway lighting.
  • Wall washing.

Cubica trunion light ditribution

TECHNICAL

INSTALLATION INSTRUCTIONS

Installation Instructions available on request
CERTIFICATIONS

accentIP65LED   SABS approved
